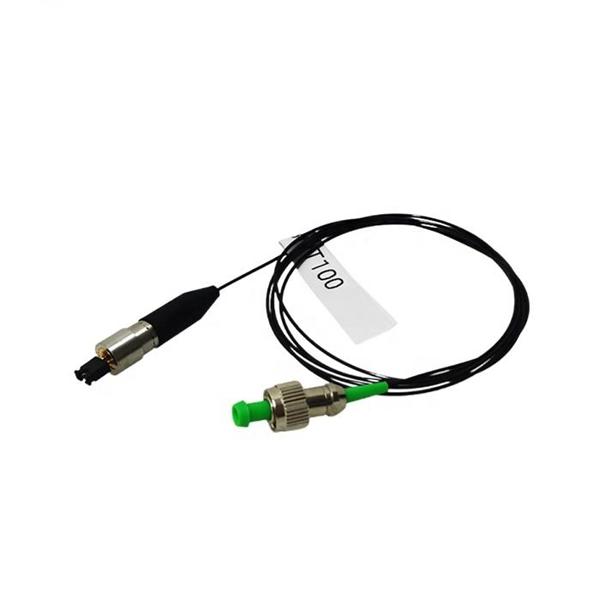

Fiber Optic Diffuse Reflection Sensor

A Fiber Optic Diffuse Reflection Sensor detects objects by measuring light reflected from the target surface, offering precise, contactless sensing in challenging industrial environments.

Overview

A diffuse reflection fiber optic sensor operates by emitting light through a fiber optic cable toward a target. The light reflects off the object and is received by the same or a separate fiber, allowing the sensor to detect the presence, position, or characteristics of the object without physical contact. Unlike through-beam sensors, diffuse reflection sensors do not require a separate receiver, making them ideal for compact or hard-to-reach spaces.

Key Features

Contactless and wear-free operation: Suitable for harsh environments, including high temperatures, electrical or magnetic fields, and potentially explosive areas. High precision: Capable of detecting small, transparent, or irregularly shaped objects. Flexible installation: Fiber optics can be routed into confined spaces, and sensor heads are available in various sizes and materials, such as stainless steel or brass.

Customizable fiber lengths: Standard cables are typically 1 meter, but lengths can be adjusted to suit specific applications. Coaxial and non-coaxial designs: Coaxial sensors provide single-point emission with multi-point reception for transparent object detection and long-distance sensing, while non-coaxial sensors are optimized for general detection tasks.

Applications

Diffuse reflection fiber optic sensors are widely used in: Electronics manufacturing: Detecting components on assembly lines. Packaging inspection: Ensuring proper placement and orientation of items. Automotive assembly: Monitoring parts and subassemblies.

Food and pharmaceutical industries: Detecting transparent or small objects in production lines. Industrial automation: Position sensing, object detection, and quality control in confined or hazardous areas.

Advantages

Durability: Resistant to environmental factors such as dust, moisture, and temperature extremes. Versatility: Can detect objects regardless of color, shape, or surface texture. Safety: Non-electrical sensing at the detection point allows use in explosive or high-voltage zones.

Reduced maintenance: No moving parts and contactless operation minimize wear and downtime.

Conclusion

Fiber optic diffuse reflection sensors provide precise, reliable, and flexible detection solutions for industrial and manufacturing applications. Their ability to operate in harsh environments, detect challenging objects, and integrate into compact spaces makes them a preferred choice for modern automation systems.
