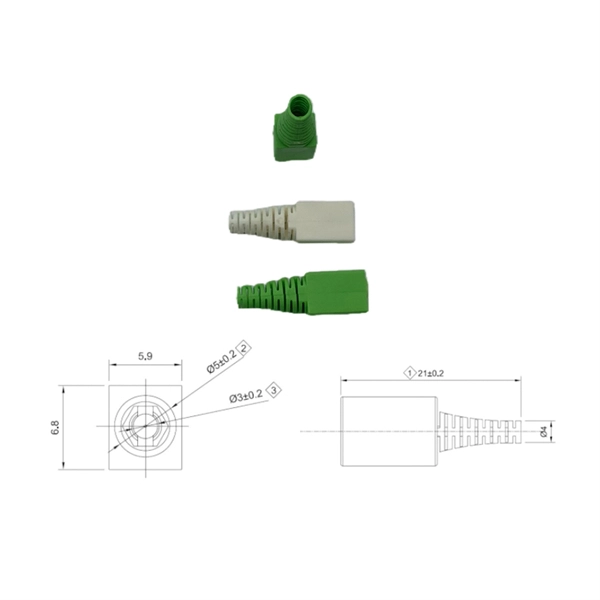

Fiber optic patch panel fiber optic storage box

Fiber optic patch panels and storage boxes organize, protect, and simplify the management of fiber optic cables in networks, ensuring scalability, reliability, and easy maintenance.

Fiber Optic Patch Panels

Definition and Purpose: A fiber patch panel is a mounted enclosure—either rack-mounted or wall-mounted—used to terminate, manage, and interconnect multiple fiber optic cables. It acts as a central hub for organizing splices and patch cords, preserving signal integrity, and facilitating maintenance and upgrades. Patch panels help prevent cable clutter, protect fragile fibers, and maintain proper bend radius to avoid signal loss.

Types: Rack-Mount Panels: Designed for data centers and large networks, these panels fit standard 19-inch or 23-inch racks and offer high port density. They can be fixed, slide-out, or swing-out for easy access and cable management.

Wall-

Mount Panels: Compact and space-saving, ideal for FTTH (Fiber to the Home), FTTB (Fiber to the Building), or small office installations. They provide organized terminations in limited spaces.

High-

Density Panels: Accommodate a large number of fibers in a single unit, suitable for network expansions or space-constrained environments. Configurations: Empty Panels: Ready for custom termination in the field. Panels with Adapters: Pre-fitted with LC, SC, ST, or E2000 adapters.

Pre-

Terminated Panels: Factory-installed pigtails or complete cable assemblies for quick deployment. Benefits: Simplifies maintenance and troubleshooting. Supports network scalability and future upgrades.

Reduces operational costs by minimizing downtime and cable wear. Enhances airflow and organization in data center racks. Fiber Storage Boxes / EnclosuresDefinition and Purpose: Fiber storage boxes, also called fiber enclosures, provide secure housing for fiber splices, excess cable lengths, and patch cords.

They protect fibers from dust, mechanical damage, and environmental factors while maintaining proper bend radius. Types: Rack-Mount Enclosures: Can hold multiple splice trays or cassettes, available in 1U to 10U sizes, and support high-density fiber applications.

Wall-

Mount Enclosures: Compact units for smaller installations, often used in residential or small enterprise networks. Modular Enclosures: Allow flexible expansion with interchangeable cassettes or adapter packs, supporting both single-mode and multimode fibers. Features: Slide-out or swing-out trays for easy access.

Lockable doors for security. Compatibility with various fiber types (OM1–OM4, OS1/OS2) and connectors (LC, SC, ST, E2000). Support for pre-terminated or field-terminated cables.

Applications: Data centers and server rooms. Enterprise networks and central offices.

Telecommunications and FTT

H deployments. Security and process automation systems.

Choosing the Right Solution

When selecting patch panels or storage boxes, consider: Port count and density based on current and future network needs. Connector type (LC, SC, ST, E2000) and fiber mode (single-mode or multimode). Mounting style (rack vs. wall) depending on space and accessibility.

Ease of maintenance with slide-out or swing-out designs. Scalability for network growth and upgrades. Properly implemented fiber patch panels and storage boxes ensure organized, reliable, and scalable network infrastructure, reducing downtime and simplifying maintenance while protecting delicate fiber optic cables.
