Keep route information, port assignments, optical compatibility and acceptance evidence connected. The notes below help turn a product list into a usable building or campus fibre brief.
Keep the information concise. Show unknowns explicitly so that a drawing or schedule does not appear more complete than it is.
Record both endpoints and the path between them, including risers, ducts, building entries and intermediate joints. Measure the intended installation path rather than relying only on the distance between buildings.
A cable core count, a panel port count and the number of active services are different quantities. Trace which fibres terminate at which ports and how each service uses them.
Match the host equipment and optics with the installed fibre path. Include connector type, polish, fibre category, wavelength and polarity in the same check.

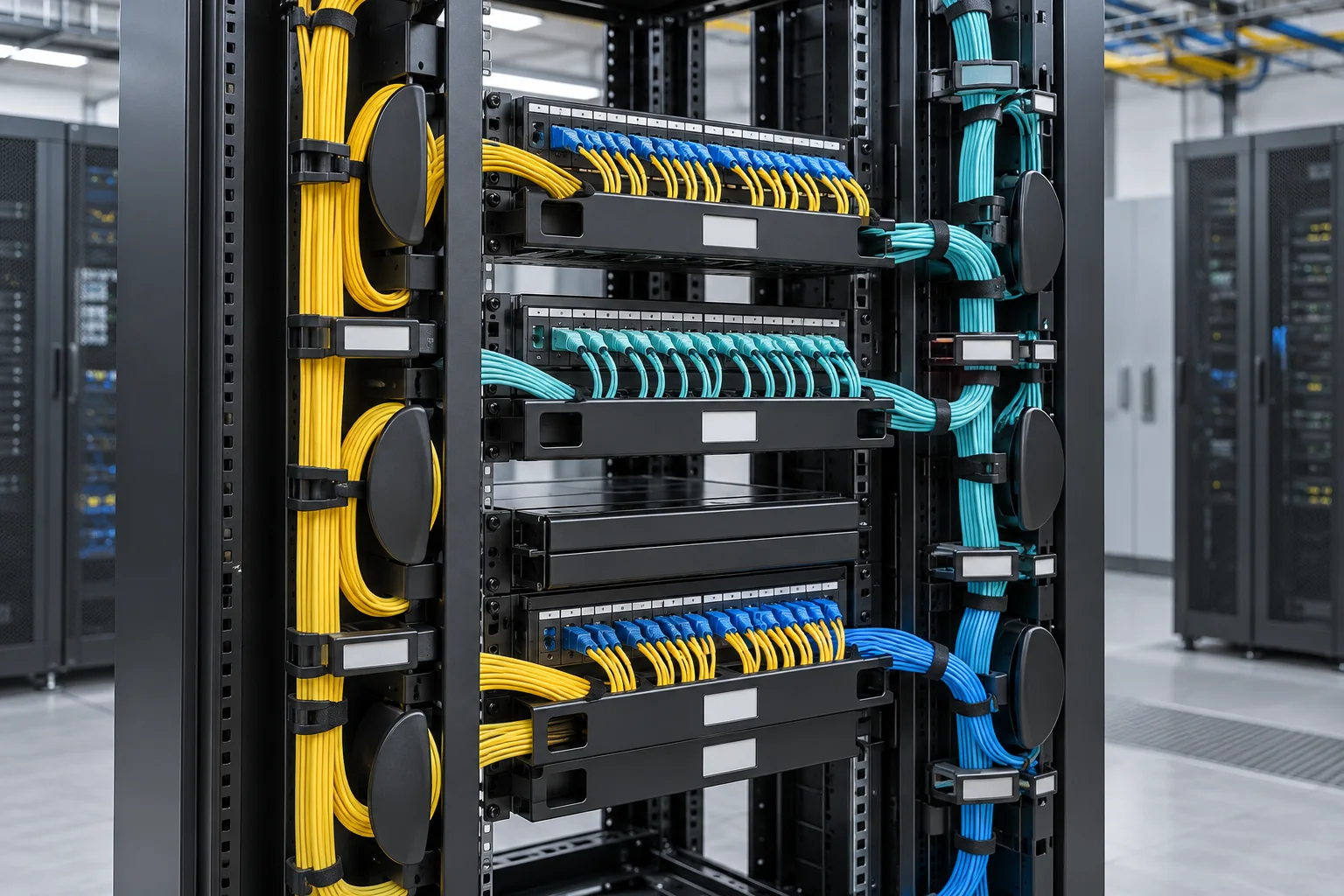

Lay out panel positions and cable zones with access in mind. Rear cable entry, front patching, door clearance and pathway drops all affect the final arrangement.
Make quantities and inclusions clear before comparing prices. Cable length alone does not describe terminations, pathways, installation access or the required completion records.
Agree the fibre identifiers, test method, limits and report format before work is complete. The results must be traceable to the installed route and endpoint schedule.
An upgrade changes more than the parts list. Identify the services affected, the approved interruption window and the point at which the installation can safely return to the previous arrangement.
These are starting questions for an enquiry, rather than substitutes for a site-specific design.
It may be suitable, but first confirm the fibre type, route length, connector condition, test records and proposed optical interfaces. A higher-speed transceiver alone does not establish that the installed path meets the new link requirements.
Spare fibres within the same cable provide capacity, but they share that cable's physical path. If route resilience is required, identify shared ducts, entries and other common points as part of the design review.
The agreed acceptance scope may also include inspection, polarity, end-to-end optical loss and identification records. Select the tests and limits for the actual application and retain results against the final fibre schedule.
Use the same capacities, interfaces, quantities and included accessories. State whether installation, testing, labelling, as-built documents and spare parts are included so that price differences can be understood.
A marked-up route and a short list of unresolved interfaces are useful starting points.
