How to use a 4-core fiber optic terminal box

A 4-core fiber optic terminal box allows you to terminate a 4-core fiber cable, connect each core to a pigtail, and manage connections through adapters for reliable network distribution.

Overview

A 4-core fiber optic terminal box is designed to terminate optical cables, connect individual fiber cores to pigtails, and provide organized access for network devices. It is commonly used in FTTH applications to distribute fiber connections to multiple endpoints ( ).

Step-by-

Step Usage1.

Prepare the Fiber Cable

Strip the outer sheath of the fiber cable to expose the individual fibers. Protect the bare fibers using buffer tubes or protective sleeves to prevent damage ( ). Mark the cable at pre-determined lengths for proper routing inside the box.

2.

Mount the Terminal Box

Install the box on a wall or rack, ensuring the front panel is easily accessible. Pierce the rubber diaphragm at the cable entry hole before inserting the cable ( ). 3.

Route Fibers Inside the Box

Use the internal plastic guide posts to route each fiber. Bring excess fiber length into the splice tray or fiber management area, maintaining proper bend radius to avoid signal loss ( ). 4.

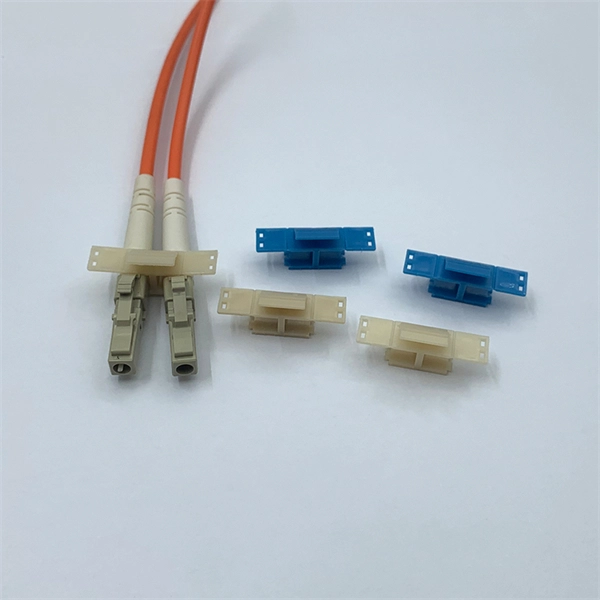

Splice or Connect Fibers

For a 4-core cable, fuse each core to a corresponding pigtail. Insert the pigtail connectors into the adapters or couplers on the fiber tray ( ). Ensure each connection is secure and properly aligned to minimize back reflection and signal loss.

5.

Organize and Secure Cables

Use cable ties, wire saddles, or spiral sleeves to gather and secure fibers neatly. Wrap protective tubes around spliced fibers and fix them with insulating tape if necessary ( ). 6.

Connect to Network Devices

Connect the other end of the pigtail or jumper to the network device, such as an optical switch or ONT (Optical Network Terminal) ( ).

Best Practices

Avoid bending fibers sharply; maintain the minimum bend radius. Keep the box clean and dust-free to prevent contamination of connectors. Label each fiber and adapter for easy identification and maintenance.

Use pre-terminated cables when possible to simplify installation ( ). By following these steps, a 4-core fiber optic terminal box can be effectively used to terminate, manage, and distribute fiber connections in a compact and organized manner, ensuring reliable network performance.
