How to insert an SFP optical module into a switch

To connect an SFP optical module to a switch, ensure compatibility, handle the module carefully, insert it into the correct slot, and connect the fiber cable properly. Step 1: Verify CompatibilityBefore installation, confirm that the SFP module is compatible with your switch. Check the switch vendor's supported transceiver list, the module type (SFP, SFP+, QSFP+), port speed (1G, 10G), fiber type (single-mode or multimode), wavelength, and distance requirements.

Using an incompatible module can cause link failures or alarms such as “unsupported transceiver”. Step 2: Prepare for InstallationPower off the switch if hot-swapping is not supported. Discharge static electricity by wearing an anti-static wrist strap or touching a grounded metal surface.

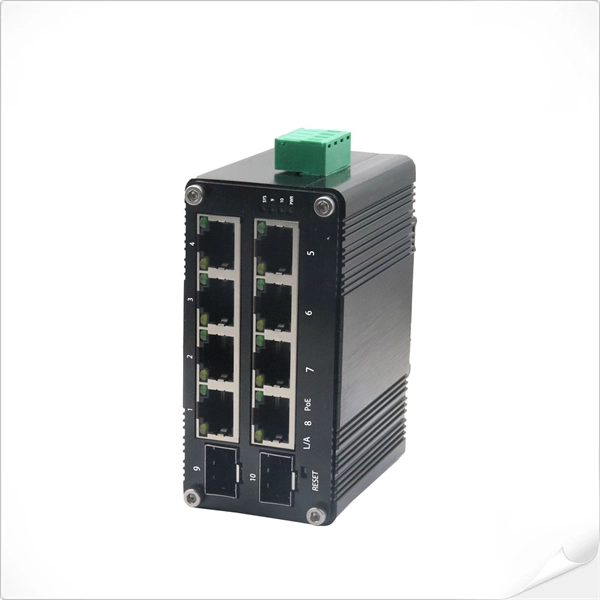

Work in a clean, dust-free environment to prevent contamination of optical connectors. Step 3: Insert the SFP ModuleLocate the correct SFP slot on the switch, usually labeled “SFP” or “SFP+”. Remove the dust cover from the slot and the module if present.

Inspect the module for visible damage before installation. Align the module with the slot, holding it by the sides and ensuring the keying mechanism matches. Insert the module straight into the slot until it clicks or the latch engages.

Avoid forcing it at an angle to prevent damage. Step 4: Connect the Fiber CableUse the appropriate fiber optic cable (LC, SC, or other connector type) for the module. Gently insert the cable into the module, ensuring the connectors are clean and undamaged.

Avoid bending or stressing the fiber to prevent signal loss or breakage. Step 5: Power On and VerifyTurn on the switch if it was powered off.

Check the LE

D indicators on the SFP module; a green light usually indicates proper operation. Confirm network connectivity and link status through the switch management interface. Step 6: Removing the Module (Optional)If hot-swapping is supported, power-off may not be necessary.

Disconnect the fiber cable first. Release the latch or clip and pull the module straight out, holding it by the metal casing. Store the module in a static-free container if it will be reused.

By following these steps and ensuring proper handling and compatibility, your SFP optical module should integrate seamlessly with your switch, providing stable and reliable network performance.
