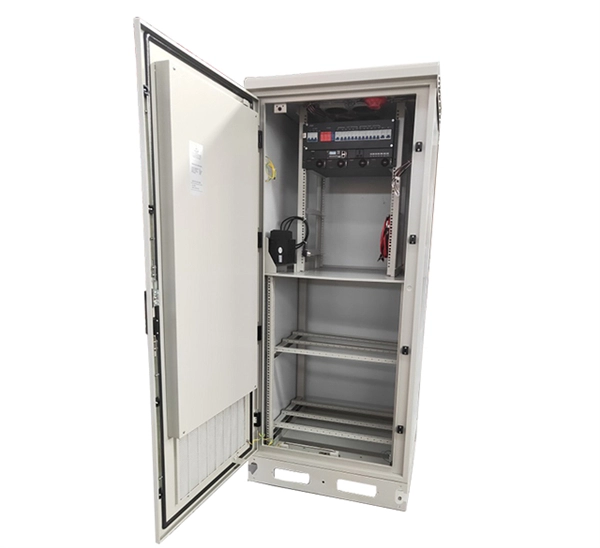

Does the welding machine use a three-level electrical distribution box

Yes, a three-phase welding machine can be connected to a three-level electrical distribution box, provided proper wiring, grounding, and overcurrent protection are implemented. Wiring ConsiderationsThree-phase welding machines can be connected using either a delta or star (wye) configuration. In a delta connection, the three input terminals of the welding machine are connected directly to the three-phase supply lines, which is suitable for high-power industrial loads but does not provide a neutral connection.

In a star connection, the three input terminals are connected to the three-phase lines, and the common point is connected to the neutral, allowing both single-phase and three-phase operation while balancing the load current. Ensure that the voltage of the distribution box matches the rated voltage of the welding machine, typically 380V or 400V for industrial three-phase machines. The input terminals should be securely connected to the supply lines, and the output terminals should be connected to the welding electrode holder and workpiece clamp according to the manufacturer's instructions.

Grounding and Safety

Proper grounding is essential. The welding machine should be connected to a grounding busbar or electrode in the distribution box to safely discharge any stray currents or faults. Modern welding machines with double or reinforced insulation may not require a separate earth connection to the workpiece, but grounding the machine itself is still recommended to prevent electrical hazards.

Overcurrent Protection

Each welding machine should have overcurrent protection sized according to the machine's rated current. Conductors supplying multiple welders must be protected by an overcurrent device rated at no more than 200% of the conductor ampacity. A disconnect switch or circuit breaker should be installed for each welder if it does not have an integral disconnect.

Practical Tips

Verify that the distribution box can handle the total load of all connected welders and other equipment. Use properly rated cables with insulation suitable for the welding current. Check that all connections are tight and secure to prevent overheating or arcing.

If the distribution box does not provide a neutral, most three-phase welders can operate with just the three phases and earth, especially transformer-based machines. By following these guidelines, a three-phase welding machine can be safely and efficiently connected to a three-level electrical distribution box while ensuring compliance with electrical standards and minimizing hazards.
