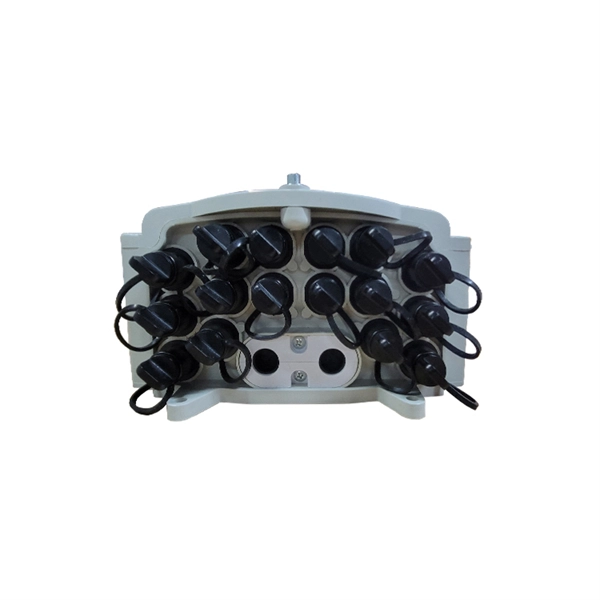

Fiber ODF fusion splicing

Fusion splicing in ODFs is a method of permanently joining optical fibers with minimal loss and high reliability, widely used in high-density and hyperscale data center environments.

Overview of Fusion Splicing

Fusion splicing is the process of permanently joining two optical fibers by melting their ends together, typically using an electric arc, although other heat sources like CO₂ lasers or electrically heated wires can also be used. The fiber ends are first stripped of their coatings, cleaved precisely, and aligned either by core alignment or cladding alignment methods. Once aligned, the fibers are fused, creating a joint with very low insertion loss (0.

05–0. 1 dB) and minimal reflectance, making it ideal for single-mode fibers. Application in Optical Distribution Frames (ODFs)In ODFs, fusion splicing is used to manage high-density fiber connections efficiently.

Modern hyperscale ODFs can support 5,000+ fusion splices within a compact footprint, which is more space-efficient than using connectors at scale. Fusion splicing reduces optical loss compared to connectors, which typically have higher insertion loss (0. 2–0.

5 dB), and provides a more reliable, maintenance-free connection.

Single-

Fiber vs. Ribbon SplicingSingle-fiber splicing: Each fiber is spliced individually, requiring precise cleaving and alignment. Ribbon or mass-fusion splicing: Multiple fibers (4, 8, 12, or more) are spliced simultaneously, significantly reducing installation time and improving optical link budgets.

Mass-fusion splicing can be nearly three times faster than single-fiber splicing, making it ideal for rapid deployment in data centers.

Splice Protection

After splicing, fibers are protected using heat-shrink sleeves or specialized splice closures. Single-fiber sleeves typically include stainless-steel strength members, while ribbon sleeves accommodate multiple fibers. Closures are designed to withstand environmental stress, moisture, and temperature variations, often meeting standards like Telcordia GR-771-Core and ISO 9001.

Advantages in ODFsHigh reliability: Splices are sealed, vibration-proof, and maintenance-free. Low optical loss: Fusion splices outperform connectors, improving link budgets and reducing power consumption in transceivers. Space efficiency: Fusion splicing allows extremely high fiber density in compact ODFs.

Flexibility: On-site cable cutting and splicing reduce the need for pre-terminated cables, simplifying inventory and deployment.

Practical Considerations

Proper fiber preparation (stripping, cleaning, cleaving) is critical for low-loss splices. Splicing machines often include automatic alignment, loss estimation, and heating functions. Ribbon splicers may use profile alignment or LID core alignment for optimal results.

Day-2 operations in hyperscale ODFs, such as moves, adds, and changes (MACs), require careful circuit identification to avoid disturbing active fibers. Fusion splicing remains the preferred method for high-density, high-performance fiber networks, particularly in data centers, long-haul telecommunications, and critical infrastructure, due to its combination of low loss, reliability, and scalability.
