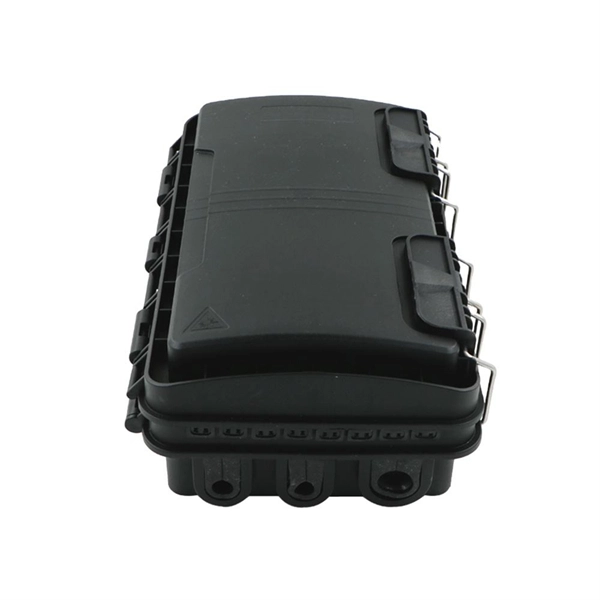

Connecting Multimode Fiber Optic Cables

Fiber and communications infrastructure knowledge brief Published 08 Apr 2024

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Multimode fiber optic cables are connected using specialized connectors such as LC, SC, ST, or MPO/MTP, with proper termination and splicing techniques ensuring reliable high-speed data transmission.

Connector Types

Multimode fiber optic cables can be terminated with several types of connectors, each suited for different applications: LC (Lucent Connector): Small form factor, commonly used in high-density data centers and enterprise networks for 10G and higher speeds.

S

C (Subscriber Connector): Push-pull design, widely used in telecom and networking environments.

S

T (Straight Tip): Bayonet-style connector, often used in legacy networks. MPO/MTP (Multi-Fiber Push-On): Supports multiple fibers in a single connector, ideal for high-density backbone and data center applications.

Termination Methods

There are two primary methods for connecting multimode fiber: Mechanical Termination: Uses pre-polished connectors that are attached to the fiber with adhesive or mechanical crimping. This method is faster and suitable for field installations but may have slightly higher insertion loss compared to fusion splicing. Fusion Splicing: Involves permanently joining two fiber ends using heat to fuse the glass.

This method provides the lowest insertion loss and is ideal for backbone or long-term installations where maximum performance is required.

Installation Best Practices

Cleanliness: Always clean fiber end faces before connecting to prevent signal loss or damage. Bend Radius: Avoid tight bends; multimode fiber is sensitive to bending, which can cause attenuation. Labeling: Properly label patch cords and connectors to simplify troubleshooting.

Testing: Verify connections using optical power meters or OTDR (Optical Time-Domain Reflectometer) to ensure signal integrity.

Compatibility Considerations

Ensure that the connector type matches the transceiver or device interface. Multimode fibers (OM1–OM5) have different bandwidth and distance capabilities, so selecting the correct fiber type and connector ensures optimal performance.

Summary

Connecting multimode fiber optic cables involves selecting the appropriate connector type, using proper termination or splicing methods, and following installation best practices to maintain signal quality.

L

C, SC, ST, and MPO/MTP connectors are the most common, while fusion splicing provides the most reliable long-term connections. Proper cleaning, handling, and testing are essential for high-speed, short- to medium-distance multimode fiber networks.
