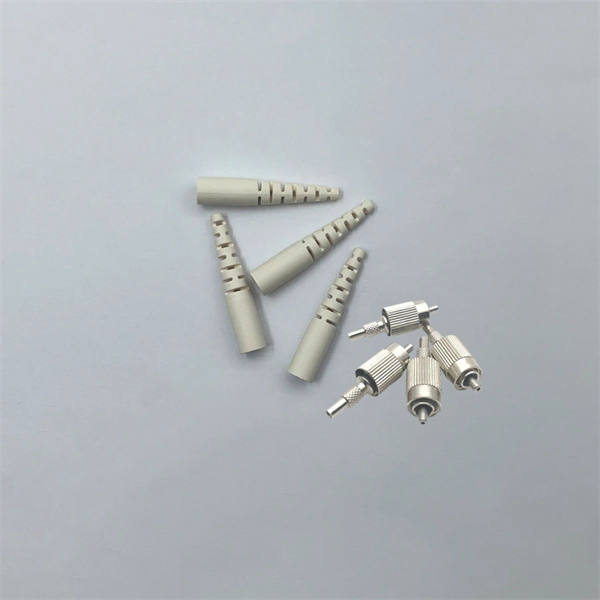

Single-mode fiber optic connector attenuation

Fiber and communications infrastructure knowledge brief Published 31 Dec 2025

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Single-mode fiber optic connector attenuation typically ranges from 0. 1 dB to 0. 5 dB per mated pair, depending on connector quality, alignment, and wavelength.

Definition and Measurement

Connector attenuation, also called insertion loss, is the portion of optical signal lost when light passes through a mated pair of fiber connectors. It is measured in decibels (dB) and represents the reduction in optical power between the input and output of the connector interface. Lower attenuation indicates better signal transmission and is critical for maintaining the optical power budget in a fiber link.

Mechanisms of Attenuation

Attenuation in single-mode fiber connectors arises primarily from misalignments between the fiber cores, including: Lateral offset: Horizontal or vertical displacement of fiber cores. Angular misalignment: Tilt between the fiber end faces. Longitudinal gap: Separation along the fiber axis.

End-face imperfections: Surface roughness or contamination. Modern physical contact (PC) connectors reduce reflection losses by eliminating the air gap between fiber ends, minimizing Fresnel reflections and improving attenuation performance.

Typical Values

For single-mode fibers (core diameter ~8–10 µm), typical connector attenuation values are: Standard connectors: 0. 2–0. 5 dB per mated pair.

High-quality or low-loss connectors: 0. 1–0. 3 dB per mated pair.

Attenuation also depends on the operating wavelength. For example, single-mode fibers exhibit lower loss at 1310 nm and 1550 nm, with typical fiber attenuation coefficients ranging from 0. 2 dB/km to 0.

5 dB/km. Impact on Optical LinksConnector attenuation contributes to the total link loss, which includes fiber attenuation, splices, and other passive components. The total attenuation must remain below the receiver's sensitivity threshold to ensure reliable data transmission.

For long-haul or high-bit-rate systems, minimizing connector loss is essential to maintain signal integrity. SummarySingle-mode fiber connector attenuation is a critical parameter in optical networks. It is influenced by connector alignment, end-face quality, and wavelength.

Typical values range from 0. 1 dB to 0. 5 dB per mated pair, and using high-quality PC or ultra-physical contact (UPC) connectors can significantly reduce losses, ensuring efficient and reliable optical communication.
