Fiber optic pigtail terminal box installation

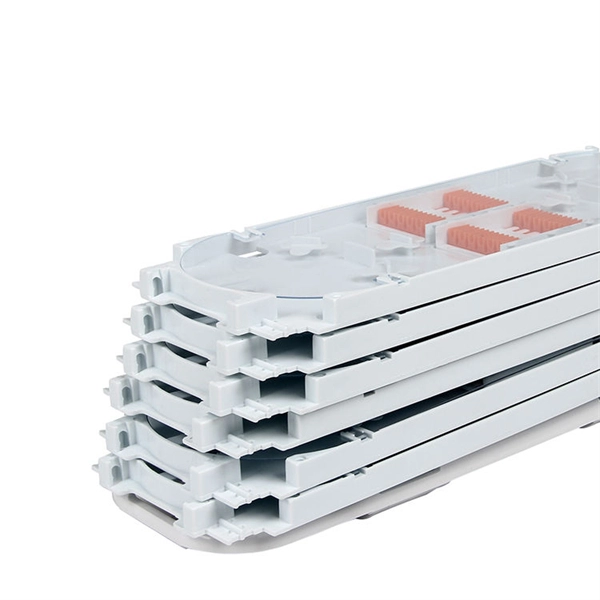

Installing a fiber optic pigtail involves securing the pigtail in the terminal box, splicing it to the incoming fiber, and connecting the factory-terminated end to adapters or devices. Step 1: Prepare the Terminal BoxOpen the fiber optic terminal box and identify the splice tray or pigtail holder. The terminal box is designed to fix the optical cable on one side and the pigtail on the other, ensuring proper alignment and strain relief.

Make sure the box is clean and free of dust. Step 2: Prepare the Fiber CableStrip the outer jacket of the incoming fiber optic cable carefully, exposing the individual fibers. Clean the fibers with isopropyl alcohol wipes to remove any debris or coating residue.

Use a fiber cleaver to cut the fiber ends cleanly for splicing. Step 3: Prepare the PigtailA fiber optic pigtail has a factory-terminated connector on one end and a bare fiber on the other. Measure and route the pigtail inside the terminal box so that the bare fiber aligns with the incoming fiber for splicing, while the connector end is positioned near the adapter or patch panel.

Step 4: Splice the FibersThere are two main splicing methods: Fusion Splicing: Use a fusion splicer to join the bare fiber of the pigtail with the incoming fiber. This method provides low insertion loss and high reliability. Mechanical Splicing: Align the fibers in a mechanical splice holder if a fusion splicer is unavailable.

This method is faster but may have slightly higher loss. After splicing, place the joint in the splice tray and secure it to prevent movement. Step 5: Connect the Pigtail to AdaptersInsert the factory-terminated connector end of the pigtail into the fiber adapter (flange) inside the terminal box.

This allows the pigtail to interface with jumpers or devices. Ensure the connector clicks securely and is properly aligned. Step 6: Organize and Protect FibersRoute all fibers neatly inside the terminal box, avoiding sharp bends.

Use the provided clips or holders to secure fibers and splices. Close the terminal box carefully, ensuring no fibers are pinched or stressed. Step 7: Test the ConnectionUse an optical power meter or OTDR to verify the spliced connection and ensure minimal signal loss.

Proper testing confirms that the pigtail installation is successful and ready for network operation. By following these steps, you can achieve a reliable, low-loss connection between the incoming fiber cable and the network equipment using a fiber optic pigtail in a terminal box.
