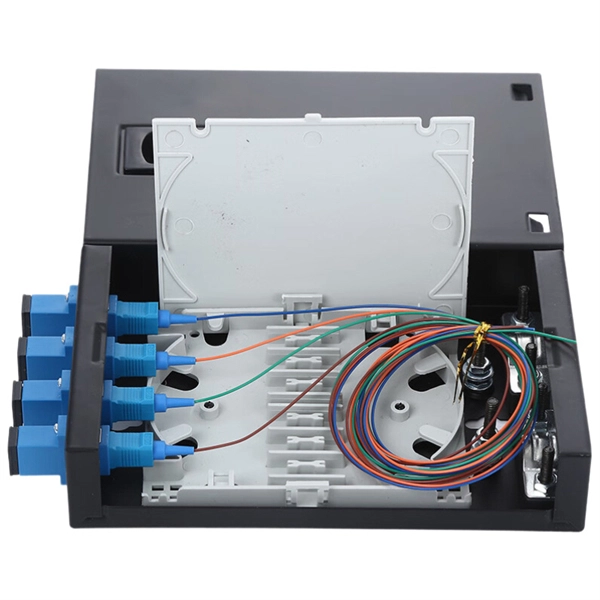

Optical Module Jumper Selection

Choose fiber optic jumpers by matching the optical module's transmission distance, data rate, fiber type, and connector interface. Key Considerations1. Transmission Distance and Data Rate Optical modules are designed for specific transmission distances and data rates.

Short-distance modules (≤2 km) typically use multi-mode fiber, while medium (10–20 km) and long-distance modules (≥30 km) use single-mode fiber. The module's data rate (e.g., 10G, 25G, 40G, 100G) also affects jumper selection, as higher rates may require lower-loss fibers and precise connectors. 2.

Fiber TypeSingle-mode fiber (SMF): 9 µm core, yellow jacket, suitable for long-distance communication with minimal intermodal dispersion. Multi-mode fiber (MMF): 50/125 µm or 62. 5/125 µm core, orange jacket, suitable for short-distance communication but with higher intermodal dispersion.

3. Connector Interface The optical module interface determines the jumper connector type: Duplex SC or LC: Common for modules with separate transmit and receive ports.

Simplex LC or Bi

Di modules: Used for modules with a single port handling both transmit and receive signals. Hybrid connections: If connecting devices with different port types, use hybrid jumpers like LC-SC, LC-ST, or LC-FC. Common connector types include LC, SC, FC, ST, MPO, and MTP.

4.

Hot-

Swappable vs Non-Hot-Swappable Modules Hot-swappable modules (e.g., GBIC, SFP, XFP) often use LC connectors, while non-hot-swappable modules (e.g., 1*9, SFF) may use SC or ST connectors. Ensure the jumper matches the module's hot-swap capability. 5.

Multi-

Source Agreement (MSA) Reference The MSA provides detailed specifications for optical modules, including working wavelength, transmission distance, and suitable fiber types. Always consult the MSA to ensure the jumper is compatible with the module's operational parameters.

Summary

To select the correct fiber optic jumper: Identify the module's transmission distance and data rate. Choose the appropriate fiber type (single-mode for long distance, multi-mode for short distance). Match the connector interface to the module ports (duplex or simplex).

Consider hot-swappable compatibility. Verify specifications against the MSA for optimal performance. Following these steps ensures reliable optical connections, minimal signal loss, and efficient network operation.
