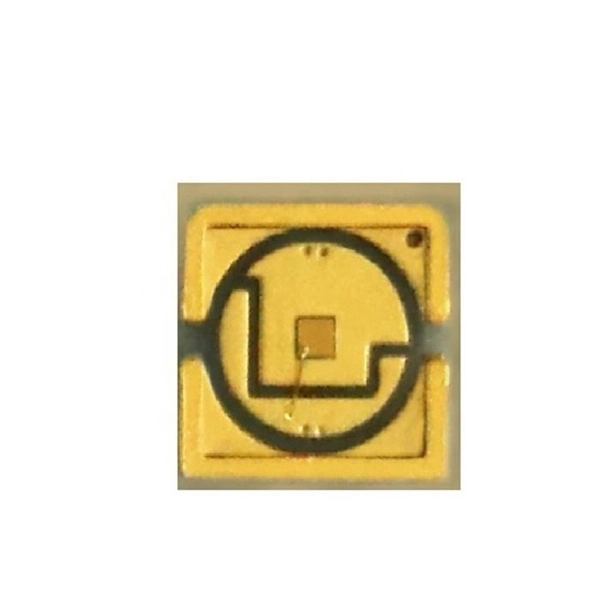

Fiber Optic Sensor Photoelectric

Fiber optic photoelectric sensors detect objects by transmitting light through optical fibers, offering high precision, remote sensing, and operation in harsh or confined environments.

Overview

A fiber optic photoelectric sensor is a type of photoelectric sensor that uses optical fibers to transmit light from an amplifier to a sensing area, enabling detection of objects without direct contact. The system typically consists of a fiber amplifier unit and one or more fiber units that guide light to and from the target. The sensor detects objects by measuring changes in light intensity caused by reflection, interruption, or refraction of the light beam.

Working Principle

Fiber optic sensors operate on the principle of light modulation. Light from an LED or laser source travels through the fiber to the sensing area. When the light interacts with a target, its properties—such as intensity, phase, or polarization—change.

This modulated light is transmitted back through the fiber to the amplifier, which converts it into an electrical signal for detection or measurement. There are several sensing methods: Through-beam sensors: The emitter and receiver fibers face each other; an object interrupts the light beam to trigger detection. Reflective sensors: The emitter and receiver are in the same housing; light reflected from the object is detected.

Retro-reflective sensors: Light is reflected back from a reflector to the receiver, allowing detection over longer distances.

Advantages

Fiber optic photoelectric sensors offer several benefits over traditional sensors: Compact and flexible: Fiber units can fit into narrow or hard-to-reach spaces. Non-contact detection: Reduces wear and prevents damage to objects. High environmental resistance: No electronics in the sensing head, making them resistant to temperature, vibration, shock, water, and electrical noise.

Remote sensing capability: Amplifiers can be mounted away from the sensing area, useful in hazardous or high-voltage environments. Versatility: Can detect a wide range of materials, including glass, plastic, wood, liquids, and transparent objects.

Applications

Fiber optic photoelectric sensors are widely used in industrial automation, including: Detecting small or transparent objects in assembly lines. Monitoring fluid levels or leaks in chemical and semiconductor processes. Environmental monitoring, such as dust or turbidity measurement.

Situations requiring long-distance or remote sensing in hazardous areas.

Summary

Fiber optic photoelectric sensors combine the precision of photoelectric detection with the flexibility and robustness of fiber optics, making them ideal for tight spaces, harsh environments, and applications requiring non-contact or remote sensing. Their adaptability and high sensitivity make them a preferred choice in modern industrial and automation systems.
