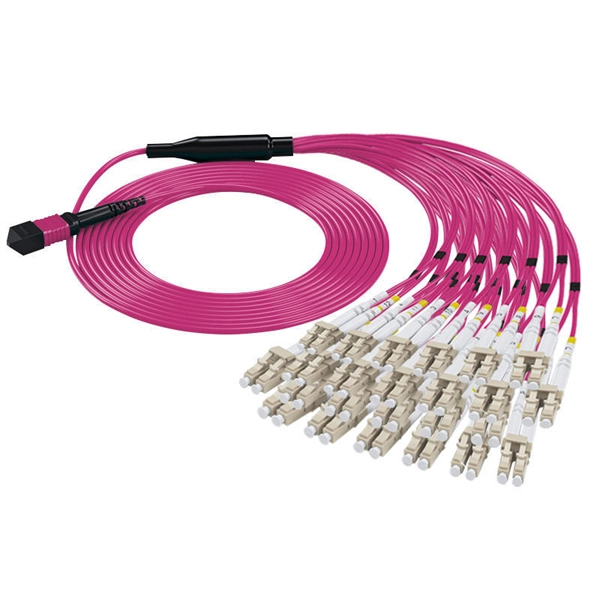

Fiber optic patch cord splicing for monitoring

Effective fiber optic patch cord splicing and management are essential for reliable monitoring systems, ensuring minimal signal loss and stable network performance.

Fiber Splicing Techniques

Fiber splicing is the process of permanently joining two fiber ends to maintain signal integrity. There are two main methods: Fusion Splicing: Uses an electric arc to fuse fibers, creating a continuous optical path. This method provides minimal optical loss, low back reflection, and long-term stability, making it ideal for monitoring networks where consistent signal quality is critical.

Mechanical Splicing: Aligns fibers using a gel or adhesive without fusion. While faster and reusable, it has slightly higher insertion loss and is generally used for temporary or emergency connections. Proper splicing ensures low attenuation, reduced bit error rates, and network redundancy, which are crucial for monitoring systems that rely on continuous data transmission.

Patch Cord Management

Patch cords connect active equipment to distribution panels or monitoring devices. Effective management improves performance and simplifies maintenance: Color Coding and Labeling: Use standardized colors and clear labels to identify fiber types and connections, reducing human error during troubleshooting. Routing and Bend Radius Control: Maintain the minimum bend radius (typically ≥400mm) to prevent microbending or macrobending losses that degrade signal quality.

Cable Length and Organization: Avoid excessively long or short patch cords; a surplus of up to 500mm is recommended. Arrange cords neatly within ODF frames or cross-connects to prevent tangling and ensure easy access. Flexible Jackets: Use patch cords with bend-insensitive fibers and durable jackets to withstand handling while preserving transmission efficiency.

Fiber Types and ConnectorsSingle-mode fibers (OS1/OS2) are preferred for long-distance monitoring links, while multimode fibers (OM1–OM5) suit short-distance connections within data centers or monitoring rooms. Common connectors include LC, SC, and MPO/MTP, chosen based on equipment compatibility and network density requirements.

Best Practices for Monitoring Applications

Plan the network layout: Identify cross-connects, splitters, and monitoring ports before splicing or patching. Use high-quality splicing tools: Ensure precise fiber alignment and protection to minimize signal loss. Document connections: Maintain records of fiber routes, splice points, and patch cord assignments for troubleshooting and future upgrades.

Regular inspection and cleaning: Contaminated connectors or splices can degrade performance; clean end faces and inspect splices periodically. By combining proper splicing techniques, organized patch cord management, and adherence to fiber standards, monitoring systems can achieve high reliability, minimal downtime, and accurate data transmission.
