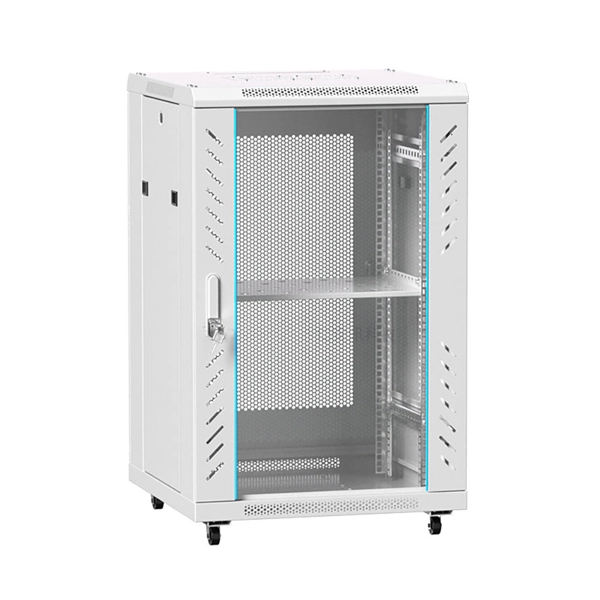

Dimensions of PDU Fiber Optic Cabinets for Island Use

Fiber and communications infrastructure knowledge brief Published 15 Aug 2023

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Standard PDU fiber optic cabinets typically range from 42U to 48U in height, with a 19-inch width and depths around 600–1200mm, supporting modular PDU integration.

Cabinet Dimensions and Specifications

Height and Rack Units (U): Most indoor floor-standing fiber optic cabinets are available in 42U or 48U configurations, which is standard for data center and network deployments, allowing ample space for fiber optic panels, switches, and PDUs. Width and Depth: The standard 19-inch EIA width is common, with depths ranging from 600mm to 1200mm, providing sufficient room for cable management, patch cords, and vertical or horizontal PDUs. Weight Capacity: Heavy-duty cabinets can support fully loaded configurations up to 3500 lb (1588 kg) for 42U and 4000 lb (1814 kg) for 48U, ensuring stability even in remote or island installations.

PD

U Integration: Cabinets are compatible with both horizontal 1U PDUs and vertical PDUs with customizable lengths and socket configurations, including IEC320 C13 or UK BS1363 standards.

Modular PD

U designs allow flexible power distribution for servers and network equipment. Cooling and Accessibility: Many cabinets support passive or active cooling solutions, including rear door heat exchangers, and provide removable front and back doors for easy access to fiber and power connections. Adjustable leveling pads ensure stability on uneven surfaces, which is particularly useful for island or remote deployments.

Cable Management: Integral cable management features, bend radius control, and slack management protect fiber optic cables and patch cords, maintaining signal integrity and simplifying maintenance.

Considerations for Island Use

Environmental Protection: Choose cabinets with sealed doors or optional environmental enclosures to protect against humidity, dust, and salt air. Modularity: Modular PDU and fiber panel options allow scaling as network demands grow. Transport and Installation: Heavy-duty cabinets with adjustable leveling pads and casters facilitate deployment in locations with limited infrastructure.

By selecting a 42U or 48U 19-inch cabinet with modular PDU support, you can ensure reliable power distribution, organized fiber management, and adaptability for island or remote network installations.
