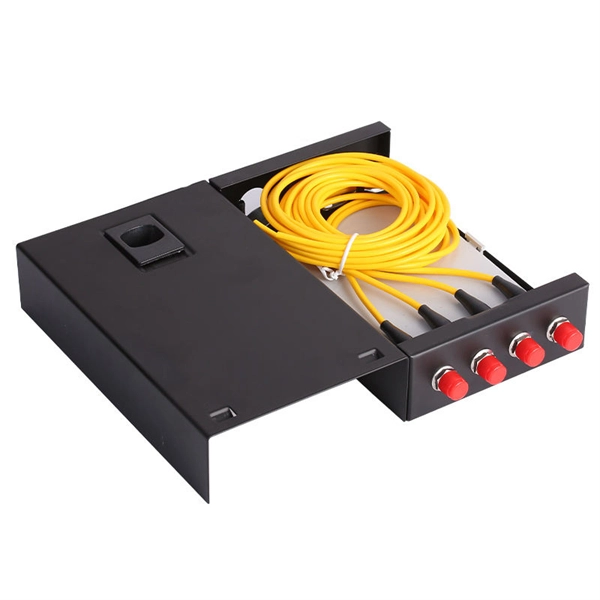

A broken fiber optic coupler will cause no signal

A lack of signal from a fiber optic coupler is often caused by dirty or misaligned connectors, damaged fiber, or incompatible components, and can be diagnosed using systematic inspection and testing. Common Causes1. Connector Contamination or Misalignment Dust, oil, or fingerprints on fiber connectors can block or scatter light, causing signal loss.

Even small contaminants can significantly reduce transmission through a coupler. Misaligned connectors or loose connections can also prevent light from entering the coupler properly. 2.

Physical Damage to Fiber Bends, kinks, or breaks in the fiber can cause light leakage or complete signal loss. Sharp bends near the coupler or along the fiber run are common culprits. 3.

Insertion Loss and Coupler Specifications Fiber couplers inherently introduce some insertion loss. Excessive loss beyond the coupler's specification can result in no detectable signal. Ensure the coupler is rated for the fiber type (single-mode or multimode) and wavelength in use.

4. Hardware or Compatibility Issues Faulty transceivers, incompatible fiber types, or incorrect duplex polarity can prevent signal transmission. Some devices require separate transmit and receive fibers; swapping connections may resolve the issue.

Step-by-

Step Troubleshooting

Inspect and Clean ConnectorsUse a fiber microscope or inspection scope to check for dirt, scratches, or pits. Clean connectors with click-style cleaners, alcohol wipes, or lint-free swabs.

Check Fiber Integrity

Look for visible bends, kinks, or breaks. Use a Visual Fault Locator (VFL) to identify breaks or high-loss points.

Verify Coupler and Device Compatibility

Confirm the coupler matches the fiber type and wavelength. Ensure duplex connections are correctly oriented (transmit to receive).

Test Signal Strength

Use an Optical Power Meter or OTDR to measure input and output power. Compare readings to expected insertion loss values; excessive loss indicates a problem with the coupler or fiber run.

Swap Components

Replace suspect transceivers, patch cords, or couplers with known-good units to isolate the fault.

Check Environmental Factors

Ensure the fiber is not exposed to extreme temperatures or moisture, which can degrade performance.

Preventive Measures

Keep dust caps on connectors when not in use. Regularly inspect and clean connectors and couplers. Avoid sharp bends and excessive inline connections.

Use proper tools and follow manufacturer specifications for insertion loss and directivity. By systematically inspecting connectors, verifying fiber integrity, and testing signal strength, most issues with a fiber optic coupler can be identified and resolved efficiently.
