How to lay fiber optic patch panels

Fiber optic patch panels are configured by terminating incoming fiber cables, organizing individual strands into ports, labeling connections, and managing routing to ensure signal integrity and scalability.

Overview of Fiber Patch Panels

A fiber optic patch panel is a mounted enclosure—either rack-mounted or wall-mounted—that serves as a central hub for terminating, organizing, and interconnecting multiple fiber optic cables. It separates bulk fiber cables into individual strands or pairs, which are then connected to network devices such as switches, routers, or optical line terminals. Patch panels protect fragile fibers, simplify maintenance, and allow for scalable network growth.

Steps in Configuring a Fiber Patch PanelSelect the Appropriate Panel TypeRack-mounted panels fit standard 19-inch or 23-inch racks and are common in data centers. Wall-mounted panels are used in smaller offices or FTTH/FTTB installations where rack space is limited. Modular or high-density panels allow for cassettes or blank slots to accommodate future expansion.

Terminate Incoming Fiber Cables

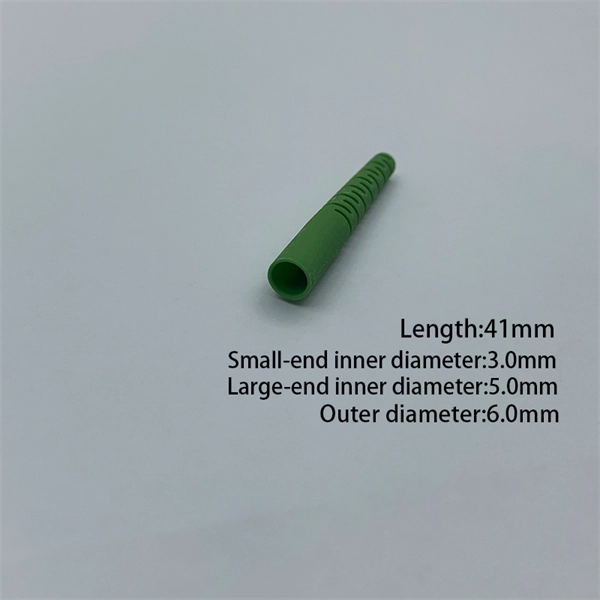

Incoming trunk cables are routed to the rear of the panel. Fibers are separated and terminated using connectors (e.g., LC, SC, or MPO) or spliced to pigtails. Proper strain relief and bend radius management are critical to prevent signal loss.

Organize and Route Fibers

Fibers are routed through management trays or guides to prevent tangling and maintain minimum bend radius. Panels may include sliding or swing-out trays for easier access during maintenance.

Labeling and Documentation

Each port, panel, and trunk cable should be labeled with unique identifiers for easy troubleshooting and network management. Maintain digital or physical documentation of the fiber layout for future reference.

Connect to Network Equipment

Patch cords connect the panel ports to active devices. Centralized patch panels simplify moves, adds, and changes (MACs) while minimizing downtime.

Plan for Scalability

Reserve extra ports and space for future network growth. Use modular panels or cassettes to allow easy addition of new fibers without major rework.

Best Practices

Maintain minimum bend radius to protect fiber integrity. Physically separate panels to reduce the risk of incorrect connections. Use fiber management accessories such as trays, guides, and strain reliefs.

Follow structured cabling standards like TIA-942 or ISO/IEC 11801 for consistent installation. Ensure clean and organized layouts to improve operational efficiency and compliance. By following these steps, fiber optic patch panels can be configured to provide a structured, scalable, and maintainable network infrastructure that supports high-speed connectivity and simplifies troubleshooting.
