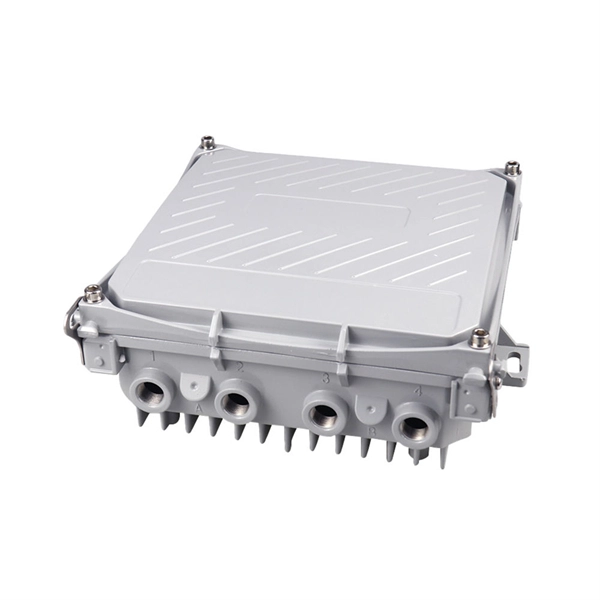

Wiring the extension cable of the distribution box

To wire an extension cable from a distribution box safely, connect the phase, neutral, and ground wires correctly, ensure proper insulation, and verify all connections with a multimeter before powering on.

Preparation and Safety

Before starting, cut off the main power supply and verify with a tester that no electricity is present in the distribution box area. Wear insulating gloves, safety glasses, and slip-resistant shoes to prevent electric shock or injury. Prepare tools such as a screwdriver, wire stripper, multimeter, and insulation tape, and ensure the extension cable and connectors meet the voltage and current specifications of your system.

Selecting the Cable and Connectors

Choose a cable with adequate gauge for the load you intend to carry. Copper conductors are preferred for high conductivity, and the insulation should be rated for the environment (indoor/outdoor). Use connectors or terminal blocks designed for secure, tight connections to prevent overheating or loose contacts.

Wiring Steps

Mount the Distribution Box: Ensure the box is level, stable, and accessible. If outdoors, use a waterproof enclosure. Strip the Cable Ends: Remove insulation carefully to expose the conductors without nicking the wires.

Connect Wires Correctly: Phase (Live) wire to the phase terminal (usually brown or red)Neutral wire to the neutral terminal (usually blue)Ground (Earth) wire to the ground terminal (green/yellow) Ensure each wire is tightly secured and that there is enough space for heat dissipation. Arrange and Secure Cables: Use cable ties or clips to keep wires neat and prevent strain on connections. Connect the Extension Cable: Attach the outgoing extension cable to the appropriate terminals, following the same phase, neutral, and ground convention.

Double-check polarity and tightness. Install Circuit Protection: Ensure breakers or fuses are rated for the load and installed correctly to protect the extension circuit.

Testing and Verification

After wiring, use a multimeter to check for continuity, correct voltage, and proper insulation. Verify that there are no short circuits and that all connections are secure. Only after confirming safety should you restore power.

Maintenance Tips

Label all circuits and cables for future reference. Schedule periodic inspections to ensure connections remain tight and insulation intact. Avoid overloading the extension cable beyond its rated capacity.

By following these steps, you can safely extend power from a distribution box while minimizing risks of electrical faults, overheating, or short circuits.
