How to design a fiber optic sensor network

A fiber optic sensor network is designed by carefully planning the network topology, selecting appropriate fiber types and sensors, and ensuring reliable signal transmission and environmental protection. Step 1: Define Requirements and ObjectivesStart by identifying the purpose of the sensor network: what parameters will be measured (temperature, strain, vibration, etc.), the coverage area, expected data rates, and the number of sensor nodes. Determine whether the network will be distributed (sensors along the fiber) or point-to-point (individual sensors connected to a central hub) and the environmental conditions the network must withstand.

Step 2: Choose Network TopologySelect a topology that balances cost, reliability, and scalability: Star topology: Each sensor connects directly to a central hub; simple but requires more fiber. Bus or daisy-chain topology: Sensors are connected along a single fiber; efficient for long distances but may be affected by a single fiber break. Ring topology: Provides redundancy and fault tolerance, useful for critical monitoring.

Step 3: Select Fiber and Sensor TypesFiber type: Single-mode fibers are preferred for long-distance, high-precision sensing; multimode fibers are suitable for shorter distances. Sensors: Choose based on the measurement type: Fiber Bragg Grating (FBG) sensors for strain, temperature, or pressure. Distributed sensors using Raman or Brillouin scattering for continuous monitoring along the fiber.

Ensure compatibility between the fiber, sensors, and interrogation equipment. Step 4: Plan Routes and Component PlacementMap out the physical routes for the fiber, considering obstacles, accessibility, and protection from environmental hazards. Identify locations for: Optical Line Terminals (OLT) or central hubs.

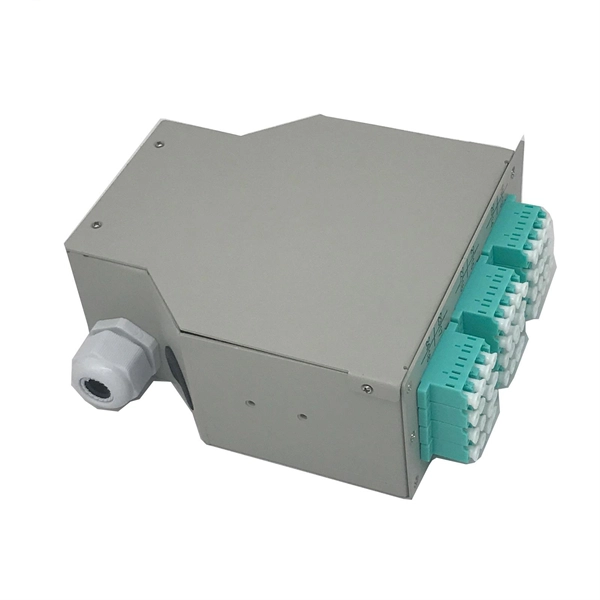

Splice points and enclosures for joining fibers. Splitters if multiple sensors share a single fiber. Optical Network Terminals (ONT) or sensor interface units at endpoints.

Step 5: Ensure Signal Integrity and RedundancyMinimize signal loss by using proper splicing, connectors, and low-loss fibers. Include redundancy in critical areas to maintain network operation in case of fiber damage. Consider amplifiers or repeaters for long-distance networks.

Step 6: Installation, Testing, and DocumentationFollow installation best practices: proper handling of fibers, protective conduits, and environmental sealing. Test the network for signal strength, sensor calibration, and fault detection. Document the network layout, sensor locations, and maintenance procedures for future troubleshooting and upgrades.

Step 7: Maintenance and Future ExpansionPlan for easy access to splice closures and enclosures. Design the network to allow scalable expansion as additional sensors or coverage areas are needed. Implement monitoring software to detect faults and maintain performance over time.

By systematically following these steps, a fiber optic sensor network can achieve high reliability, accurate sensing, and long-term scalability, while minimizing installation and operational costs.
