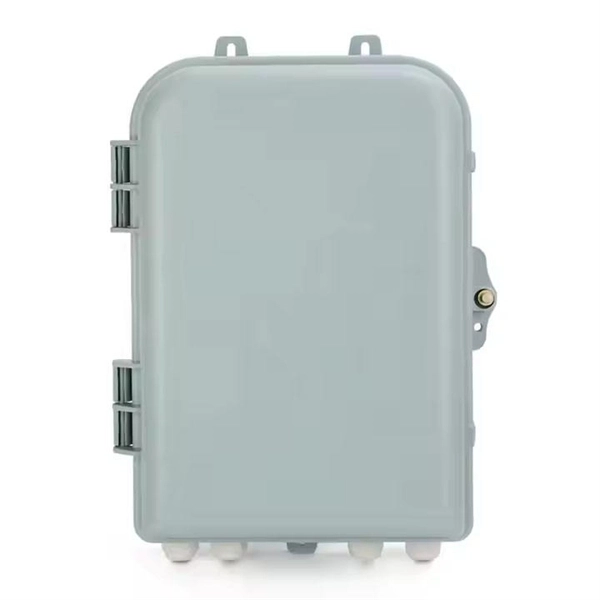

Pre-opening inspection of optical cable reel

A pre-opening inspection of an optical cable reel ensures the cable and reel are undamaged, properly stored, and meet technical specifications before installation.

Visual and Physical Inspection

Before opening the reel, inspect the reel and cable for any visible damage, such as cracks, dents, or signs of moisture, and confirm that the reel is stored on solid, level ground to prevent flange sinking or deformation (Corning). Ensure the reel is oriented according to the directional arrow on the flange and avoid sliding it with forklifts. Check that all wooden reel bolts are tightened and periodically recheck during handling.

Cable Specifications and Documentation

Verify the cable type, length, and quantity against the design documents or contract specifications. Review factory test records and ensure the cable meets the required optical and mechanical specifications, including fiber count, attenuation, and minimum bend radius. Prepare all necessary construction tools, instruments, and vehicles for handling and testing.

Fiber and Connector Inspection

Inspect the fiber endfaces and connectors using a video microscope or fiberscope. Check for dirt, scratches, or contamination. If the inspection fails, clean the connectors using appropriate tools such as isopropanol wipes or click cleaners, ensuring the correct ferrule size is used.

Always keep protective caps on unused connectors to prevent contamination.

Optical Testing

Perform basic optical tests to confirm fiber integrity. Measure fiber length, attenuation, and continuity using an OTDR or, if unavailable, a light source and optical power meter. Compare results with manufacturer data to ensure consistency.

For long cables with splices, verify each splice with an OTDR to ensure proper performance.

Handling and Safety Precautions

Maintain cleanliness during handling to prevent contamination. Limit maximum tension according to cable specifications (e.g., 600 lbs for outside plant cables) and observe minimum bend radius requirements. Always disconnect the cable from power sources and wear certified laser safety glasses when inspecting connectors.

Avoid rolling the reel against its intended direction and manage cable payoff speed to prevent tangling or damage.

Documentation

Record all inspection results, including visual checks, test measurements, and any corrective actions taken. This ensures traceability and compliance with quality assurance standards. By following these steps, the optical cable reel can be safely opened and prepared for installation while minimizing the risk of damage or performance issues.
