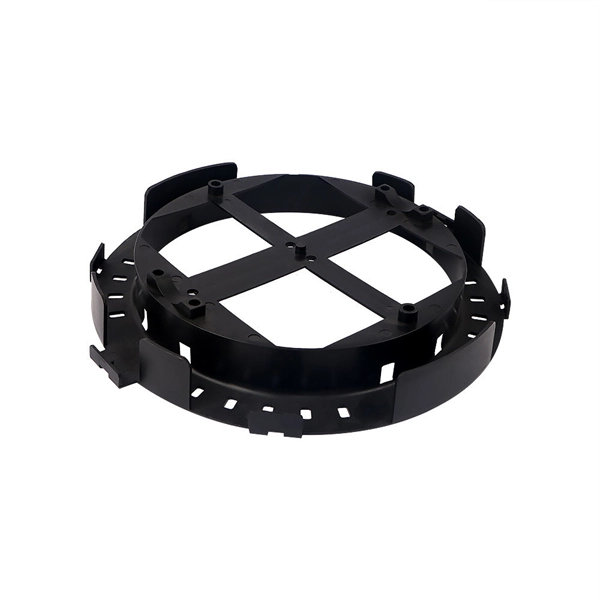

Bus trunking joint partition

Bus trunking joint partitions are critical points in a busbar trunking system where sections are joined to ensure electrical continuity, mechanical strength, and safety.

Overview of Bus Trunking Systems

Busbar trunking systems, also called busbar ducts or busways, are prefabricated electrical distribution systems that enclose copper or aluminum busbars in a protective housing. They are used for high-current, high-density, or flexible installations and are preferred over cable trays for modularity and efficiency. Sections are typically manufactured in standard lengths (1–3 meters) and connected on-site, with partitions or joints allowing for expansion, tap-offs, or directional changes.

Types of Joint Connections

When creating a joint partition in a bus trunking system, the connection must maintain low electrical resistance, mechanical integrity, and environmental protection. Common jointing methods include: Bolted Joints: Busbars are overlapped and bolted together, often with flat washers to distribute pressure. Bolted joints are reliable and field-assemblable but require drilled or punched holes, which can slightly distort current flow.

Clamped Joints: Overlapping busbars are secured with external clamps, providing nearly uniform contact pressure without drilling holes. Clamped joints reduce obstacles to current flow and moderate temperature changes but require more space. Riveted Joints: Similar to bolted joints but use rivets.

They cannot loosen over time but are harder to install and controlling contact pressure is more challenging.

Partitioning Considerations

Insulation and Protection: Bus trunking systems often use Class-F insulation and fully enclosed housings to prevent moisture ingress, reduce corrosion, and extend system life. IP-rated systems (e.g., IP55–IP68) provide protection against dust and water, suitable for demanding environments. Mechanical Support: Vertical and horizontal supports, such as spring hangers or C-channel brackets, are used to absorb expansion and maintain alignment, especially for high-current or multi-floor installations.

Joint Overlap and Contact Area: A larger overlapping area reduces power loss and ensures better electrical performance. Proper torqueing and alignment are essential to maintain low resistance and prevent overheating.

Tap-

Off and Modular Access: Some systems include plug-in units or tap-off windows, allowing sections to be partitioned while maintaining flexibility for future expansion or load changes.

Best Practices

Follow manufacturer instructions for joint assembly, including torque specifications and alignment guides. Ensure proper insulation and sealing at the joint to maintain IP rating and prevent environmental damage. Use standardized joint types (bolted, clamped, or riveted) consistently across the system to simplify maintenance and reduce installation errors.

Provide adequate mechanical support for long runs or high-current sections to prevent sagging or misalignment. Consider thermal expansion and vibration, especially in industrial or outdoor installations, to avoid stress on the joint. By carefully designing and installing bus trunking joint partitions, electrical systems can achieve high reliability, safety, and long-term performance while allowing modularity and future expansion.
