Cable Termination in Cable Tray

Proper cable termination in cable trays ensures mechanical support, electrical safety, and compliance with NEC and EMC standards.

Key Principles of Cable Termination

Cable termination treatment in cable trays involves securing the ends of cables, protecting them from mechanical stress, and ensuring proper grounding and electrical continuity. This process is critical to prevent damage, reduce electromagnetic interference (EMI), and maintain system reliability.

Mechanical Protection

Use of Drop-Outs and Fittings: Cables exiting the tray should pass through drop-outs or bends to avoid sharp edges that can damage insulation.

Clamps and Hold-

Downs: Secure cable ends with hold-down clamps or cable ties to prevent movement and strain on connectors. Cable Segregation: Separate high-power and low-power cables to minimize EMI and maintain signal integrity.

Electrical Safety and Grounding

Tray as Equipment Grounding Conductor (EGC): Metallic trays can serve as the EGC if properly bonded. All tray sections should be electrically continuous using splice plates, bonding jumpers, or clamps. Bonding Jumpers: Where gaps exist, use appropriately sized bonding jumpers to maintain continuity.

For non-metallic trays, a separate EGC conductor may be required. Insulated Conductors: In aluminum trays, use insulated EGC conductors to prevent electrolytic corrosion, removing insulation only at bonding points with tin or zinc-plated connectors.

Environmental and EMC Considerations

Covers and Protection: Use tray covers to protect cable terminations from dust, moisture, and physical interference.

EM

C Compliance: Ensure all terminations and tray connections follow good engineering EMC practices, including solid bonding of all components to reduce perturbation effects. Clearances: Maintain adequate vertical clearance above trays for safe access and maintenance, typically at least 12 inches as per NEC updates.

Best Practices

Plan Cable Routes: Design terminations to minimize bends and stress points. Label and Identify: Clearly mark cable ends for easy maintenance and troubleshooting. Regular Inspection: Periodically check terminations for mechanical integrity, corrosion, and grounding continuity.

Follow Standards: Adhere to NEC 392, NEMA VE-2, and site-specific EMC guidelines to ensure safety and compliance. Proper cable termination treatment in cable trays not only protects the cables and equipment but also ensures personnel safety and long-term system reliability.

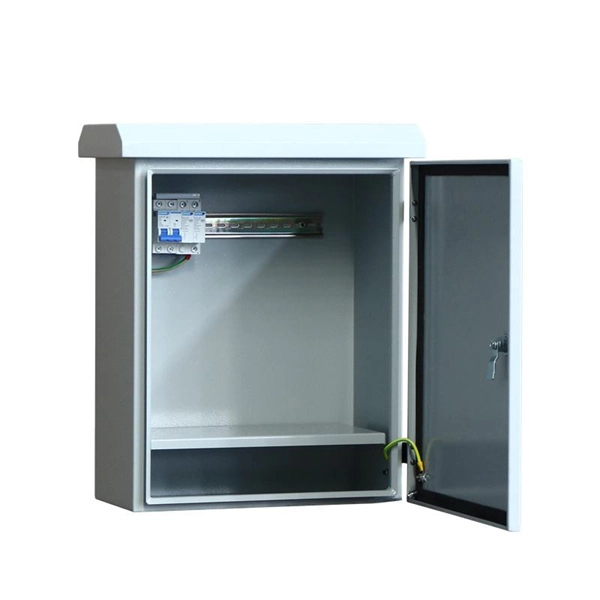

Cable Termination in Cable Tray
