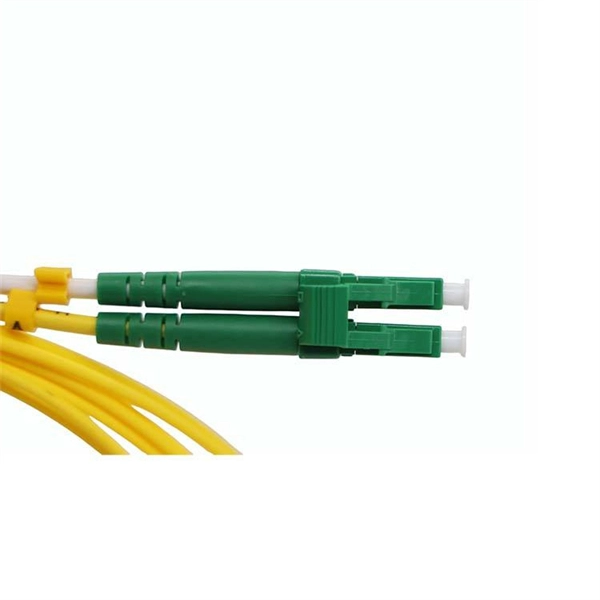

Dual-core fiber optic cold connector wiring

Dual-core fiber optic cold connectors use mechanical splicing to align and secure two fiber cores without heat, providing a quick, field-installable connection with typical loss of 0. 2–0. 5 dB per joint.

Overview of Cold Connector Method

A cold connector, also called a mechanical splice, connects two optical fibers using a mechanical fixture rather than fusion splicing. The fibers are precisely aligned in a V-groove or mechanical sleeve, and a matching gel or liquid is applied to reduce refractive index mismatch and minimize signal loss. This method is fast, does not require power, and is suitable for field operations or temporary connections.

Tools and Materials Required

Fiber optic cleaver for precise end-face cuttingMechanical splice sleeve or dual-core cold connectorFiber stripping tools to remove the protective coatingAlcohol and lint-free wipes for cleaning fiber endsOptional: small tweezers for handling fibersMatching gel or index-matching fluid (usually included with the connector)Step-by-Step Wiring ProcedurePrepare the Fibers: Strip the outer jacket and coating from each fiber to expose the bare glass. Clean the fiber ends with alcohol and lint-free wipes to remove dust and oils. Cleave the Fiber Ends: Use a fiber cleaver to create a flat, perpendicular end-face.

Proper cleaving is critical to minimize insertion loss and back reflection. Insert Fibers into Connector: Place each fiber into the dual-core cold connector or mechanical splice sleeve. Ensure the fibers are seated in the V-groove or alignment channel.

Apply Matching Gel: If the connector uses index-matching gel, apply it to the fiber ends to reduce Fresnel reflection and improve optical transmission. Secure the Fibers: Lock the fibers in place using the connector's clamping mechanism. Verify that both cores are properly aligned and fully seated.

Test the Connection: Use an optical power meter or OTDR to measure insertion loss. Typical mechanical splice loss ranges from 0. 2 to 0.

5 dB, higher than fusion splicing but acceptable for short-term or field applications.

Considerations for Dual-

Core Connections

Ensure both fiber cores are identical in type (singlemode or multimode) and core diameter to minimize loss. Avoid bending or stressing the fibers after insertion, as this can increase attenuation. Cold connectors are not permanent; for long-term installations, fusion splicing is preferred due to lower loss (0.

01–0. 05 dB) and higher mechanical strength.

Advantages and Limitations

Advantages: Quick installation, no power requiredField-friendly, minimal equipmentReusable in some designs Limitations: Higher insertion loss than fusion splicingPotential for misalignment over timeLess suitable for long-distance or high-precision applications By following these steps and using proper tools, a dual-core fiber optic cold connector can provide a reliable, temporary, or field-installable connection with acceptable optical performance.
