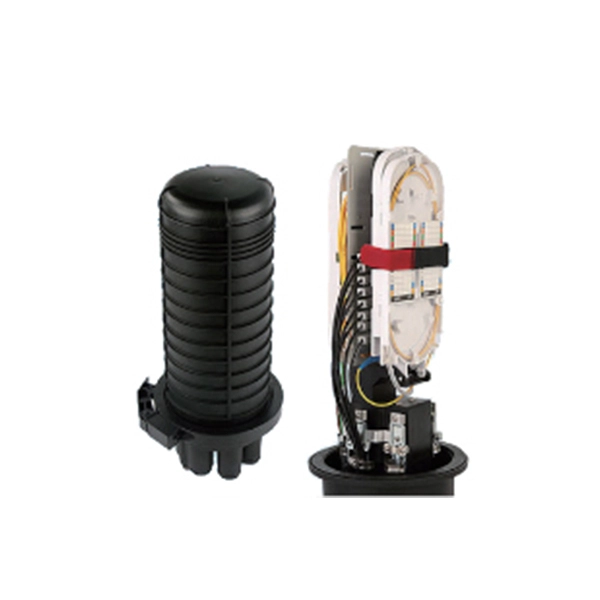

How to convert a fiber distribution box into a beam splitter

A fiber distribution box can function as a beam splitter by integrating a passive optical splitter inside it, allowing a single input fiber to distribute light to multiple output fibers.

Understanding Fiber Optic Splitters

A fiber optic splitter, also called a beam splitter, is a passive device that divides an incoming optical signal into two or more outputs or combines multiple inputs into one. Splitters operate without power, relying on light reflection, refraction, and waveguiding principles to distribute signals efficiently. Common types include: Fused Biconical Taper (FBT) Splitters: Made by fusing and tapering fibers together, suitable for low split ratios like 1: 2 or 1: 4.

Planar Lightwave Circuit (PLC) Splitters: Fabricated on a silica substrate using photolithography, ideal for high split ratios (1: 16, 1: 32, 1: 64) and precise, even power distribution. Steps to Integrate a Splitter into a Fiber Distribution BoxSelect the Appropriate Splitter: Choose an FBT splitter for small networks or short distances, or a PLC splitter for high split ratios and long-haul applications. Ensure compatibility with your fiber type (single-mode or multimode).

Prepare the Distribution Box: Open the fiber distribution box and identify the input fiber from the Optical Line Terminal (OLT) or upstream source. Ensure there is enough space to mount the splitter module securely. Install the Splitter: Place the splitter inside the box, connecting the input fiber to the splitter's input port.

Route the output fibers to the designated output ports in the box. Use fiber management trays or holders to prevent bending or stress on the fibers. Test and Label: After installation, test each output fiber for signal strength and loss.

Label the fibers clearly to indicate the split ratio and destination, which is critical for maintenance and troubleshooting. Optional Cascading: For higher split ratios, multiple splitters can be cascaded inside the box (e.g., 1x2 followed by 1x16 to achieve 1x32) to meet network requirements.

Considerations

Loss Management: Each split introduces insertion loss. Ensure the total loss does not exceed the network's optical budget. Environmental Protection: If the box is outdoors, use IP-rated enclosures to protect the splitter from dust, moisture, and UV exposure.

Bidirectional Use: Most splitters support bidirectional signals, which is important for two-way communication in FTTH networks. By following these steps, a standard fiber distribution box can effectively serve as a beam splitter, distributing optical signals to multiple endpoints while maintaining signal integrity and network reliability.
