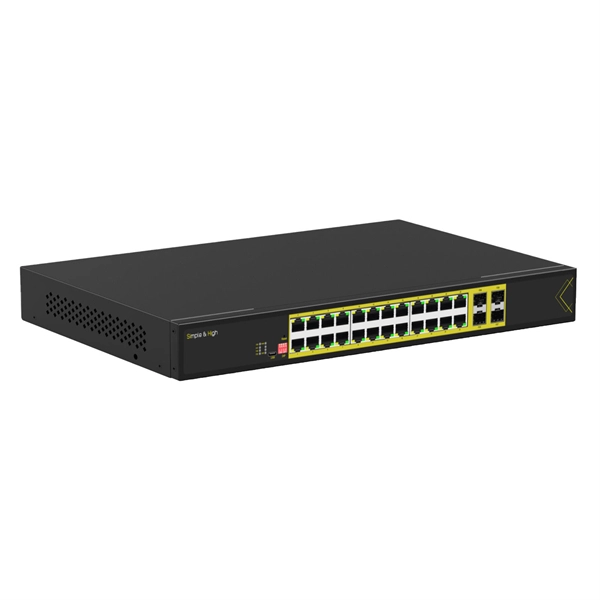

How to check fiber optic cable on a switch

To verify a fiber optic cable on a switch, perform a physical inspection, check switch interface status, and use diagnostic tools to confirm connectivity and signal quality. 1.

Physical Inspection

Start by examining the fiber optic cable and connectors: Inspect the cable for cuts, kinks, or abrasions, as even minor damage can degrade performance. Check connectors at both ends for dust or debris; clean them if necessary to prevent signal loss. Verify connections are secure and plugged into the correct ports on the switch and connected device.

Check bend radius to ensure the cable is not bent beyond its minimum radius, which can cause attenuation. 2.

Switch-

Based Diagnostics

Use the switch's software tools to check the fiber link: Show interface status: Log into the switch and run show interfaces status to see if the port is up or down. Detailed interface info: Use show interfaces to view operational status, input/output rates, and error statistics. Error counters: Run show interfaces counters errors to detect CRC errors, input errors, or frame errors that indicate cable or transceiver issues.

System logs: Check show logging for any interface-related alarms or warnings. 3.

Fiber Testing Tools

For more precise testing, specialized tools can be used: Visible light source: A visual fault locator can help detect breaks or continuity issues by showing light at the fault point. Power meter and light source: Measures end-to-end signal loss (attenuation) to ensure the fiber meets specifications. Optical Time Domain Reflectometer (OTDR): Pinpoints exact locations of faults, splices, or breaks along the fiber.

Fiber inspection cameras: Detect contamination or connector defects that may not be visible to the naked eye. 4.

Additional Considerations

Ensure the transceiver modules (SFPs) are compatible with the switch, as third-party or non-compatible SFPs can cause unpredictable behavior. Follow safety precautions when handling fiber optics, as laser light can damage eyes. If problems persist after inspection and testing, consider replacing the cable or transceiver and retesting the link.

By combining physical inspection, switch diagnostics, and fiber testing tools, you can effectively determine whether a fiber optic cable is working and identify any issues affecting connectivity.
