What is a fiber optic panel

A fiber optic panel, also known as a fiber patch panel or Optical Distribution Frame (ODF), is an enclosure that organizes, terminates, and manages multiple fiber optic cables in a network. What a Fiber Optic Panel DoesA fiber optic panel serves as a central hub where incoming and outgoing fiber cables are connected, organized, and routed. It separates bulk fiber cables into individual strands or pairs, which then connect to electronic devices for communication over fiber optics.

The panel protects delicate fibers, simplifies maintenance, and allows for easy network expansion or troubleshooting, keeping the system organized and efficient.

Types of Fiber Optic Panels

Fiber optic panels are categorized based on installation and network requirements: Rack-Mount Panels: Designed for standard 19-inch or 23-inch equipment racks, commonly used in data centers and server rooms. They provide high port density and centralized cable management.

Wall-

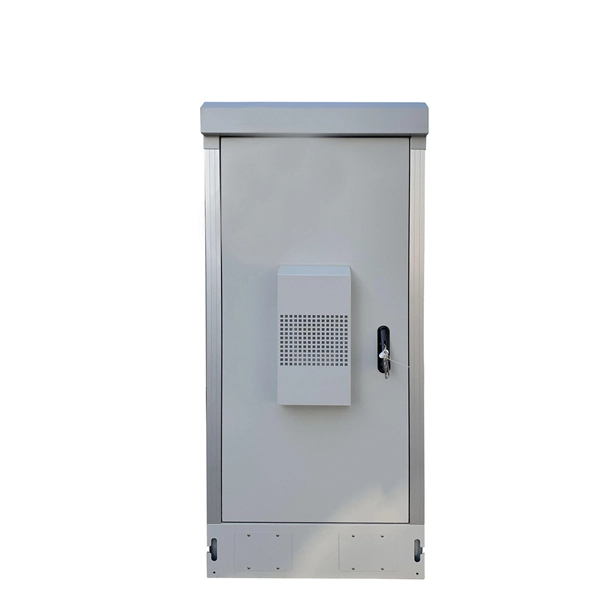

Mount Panels: Compact panels mounted directly on walls, ideal for small offices, FTTH (Fiber to the Home), or FTTB (Fiber to the Building) installations. Outdoor Panels: Built to withstand environmental conditions like rain, dust, and wind, often made from fiberglass, steel, or aluminum, and rated with NEMA standards for protection. DIN-Mount Panels: Lightweight panels designed for industrial settings, mounted on DIN rails for quick installation and removal.

Optical Distribution Frames (ODF): High-density modular panels that combine splicing, termination, and interconnection in one unit, supporting large-scale networks and future expansion.

Key Features

Cable Organization: Keeps fiber strands neatly arranged to prevent tangling and damage. Simplified Maintenance: Facilitates easy troubleshooting, upgrades, and network changes. Fiber Protection: Safeguards fragile fibers from physical stress.

Scalability: Allows for network growth without major rework. Port Density: Panels vary in the number of ports, from small 12-port units to high-density panels with over 144 fibers. In summary, the fiber optic panel is the structured interface between your network equipment and fiber cabling, essential for organized, efficient, and scalable fiber optic networks.
