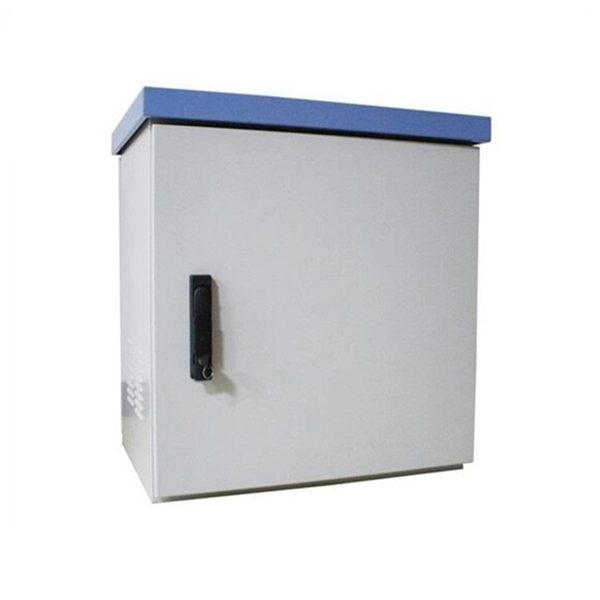

Wiring method for heating distribution box

Fiber and communications infrastructure knowledge brief Published 05 Oct 2024

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

A heating distribution box should be wired with proper circuit separation, color-coded wires, correct breaker sizing, and centralized control for multiple heating loops.

Key Components and Preparation

A heating distribution box is used to centralize control of multiple heating circuits, such as electric heat tracing cables for pipelines or floor heating systems. Before wiring, ensure you have: Circuit breakers rated for each heating loopProperly sized wires according to load (typically 2. 5mm²–4mm² for heating circuits)Terminal blocks, busbars, and DIN rails for mountingCable ties and labeling materials for neat wiring Wiring Layout and MethodBreaker Arrangement: Install circuit breakers from left to right, reserving space for future expansion on the right side.

Each heating loop should have its own breaker for safety and independent control. Wire Color Coding: Phase wires: A-phase yellow, B-phase green, C-phase redNeutral wire: BlueGround wire: Green/yellow striped Connection Method: Connect the incoming power to the main breaker first. From the main breaker, wire each branch circuit to its respective heating loop breaker.

Use parallel connections if needed to simplify wiring and reduce congestion. Wiring Direction and Management: Route wires from left (main breaker) to right (branch circuits) inside the box. Use cable ties to secure wires neatly, maintaining uniform spacing and avoiding bends or kinks.

Leave space for heat dissipation to prevent overheating. Centralized Control: For systems with long heating cables or multiple loops, a temperature control switch can be installed in the distribution box to manage all loops centrally, improving efficiency and reducing manual intervention.

Safety and Testing

Ensure all connections are tight and properly insulated. Label each circuit clearly for maintenance and troubleshooting. Perform insulation resistance tests and check for short circuits or overloads before powering the system.

Follow local electrical codes (NEC, IEC, or national standards) and use certified components.

Additional Considerations

Choose a distribution box with appropriate IP/NEMA rating for indoor or outdoor use. Use modular designs if future expansion is anticipated. Schedule regular inspections to maintain long-term reliability.

By following these wiring methods, a heating distribution box can safely and efficiently manage multiple heating circuits, ensuring proper operation and compliance with safety standards.
