Photovoltaic Relay Protection Maintenance

Regular maintenance of photovoltaic (PV) protective relays ensures system safety, reliability, and optimal performance by detecting faults and preventing damage to PV components.

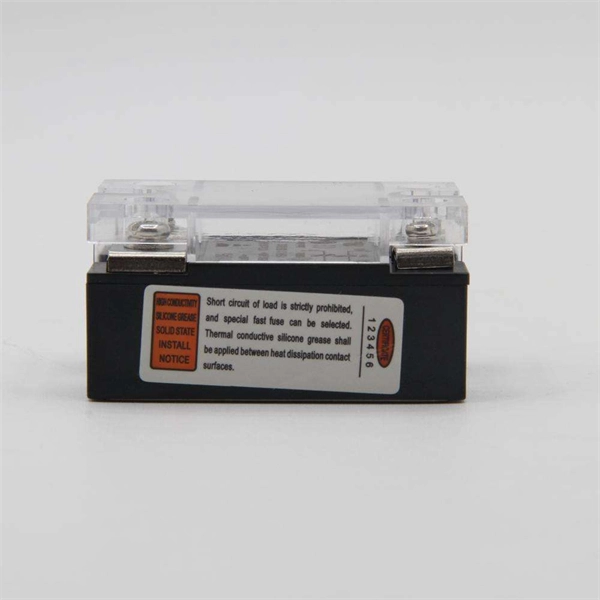

Overview of PV Protective Relays

Protective relays in PV systems are devices that monitor voltage, current, and frequency to detect abnormal conditions and isolate affected parts of the circuit. They can be electromechanical (using moving parts) or static/solid-state (using semiconductor devices like diodes or transistors),. Static relays are generally preferred for PV systems due to their faster response, higher precision, and longer lifespan.

Relays perform functions such as overvoltage, undervoltage, frequency protection, directional power detection, and grid isolation. Maintenance Procedures1.

Visual Inspection

Check for physical damage to the relay housing, terminals, and wiring. Inspect for corrosion, dust, or moisture accumulation that could affect relay performance. Verify that LED indicators or display panels are functioning correctly to detect faults.

2.

Functional Testing

Conduct operational tests to ensure the relay responds correctly to simulated fault conditions. Verify pickup and time-delay settings for overvoltage (59), undervoltage (27), and frequency (81) functions according to system specifications. Test directional power functions to ensure proper detection of reverse power flow from the grid.

3.

Electrical Measurements

Measure input voltage and current to confirm the relay is receiving accurate signals. Check trip and close operations of associated breakers or switches to ensure proper isolation during faults. Record readings and compare with previous maintenance logs to detect trends or degradation.

4.

Cleaning and Environmental Control

Remove dust, dirt, and debris from relay enclosures using a soft brush or compressed air. Ensure the relay is protected from moisture and extreme temperatures, which can affect performance. 5.

Firmware and Settings Verification

For digital relays, verify that firmware is up to date and settings match the system design. Confirm that communication with monitoring systems is operational for remote diagnostics. 6.

Documentation and Scheduling

Maintain a log of all inspections, tests, and corrective actions. Follow a scheduled maintenance program, typically semi-annual or annual, depending on system size and environmental conditions. Update relay settings if system modifications or expansions occur.

Best Practices

Always de-energize circuits before performing maintenance to ensure safety. Use manufacturer-recommended tools and procedures for testing and calibration. Integrate relay maintenance with overall PV system O&M, including inverters, charge controllers, and battery banks, to ensure holistic system reliability.

Periodically review utility interconnection requirements to ensure compliance with local standards. By following these procedures, PV protective relays can reliably detect faults, prevent equipment damage, and maintain the safety and efficiency of the solar PV system.
