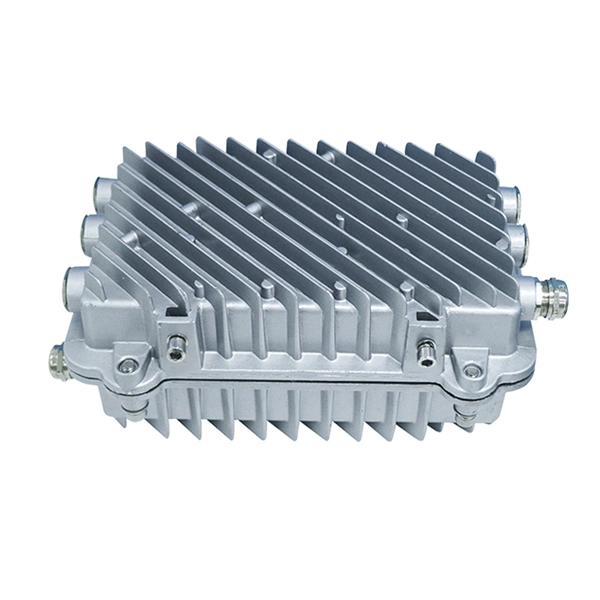

Installation of Explosion-proof Power Lighting Distribution Box

Installation of an explosion-proof lighting distribution box requires strict adherence to safety standards, proper grounding, correct wiring, and secure mounting to ensure safe operation in hazardous environments.

Preparation and Safety Measures

Before installation, ensure the power supply is completely turned off to prevent electrical hazards. Only use cables, connectors, and components rated for explosion-proof applications (EX or ATEX certified) and resistant to flame, impact, and mechanical damage. The installation should be performed by a qualified professional familiar with hazardous area electrical codes.

Avoid opening the box cover while the power is on, and protect all explosion-proof joint surfaces from scratches during installation or maintenance. Mounting MethodsExplosion-proof lighting distribution boxes can be installed using one of the following methods: Wall-mounted surface installation – secure the box directly to a wall using appropriate fasteners. Ensure the box is level and the perpendicularity deviation does not exceed 3 mm.

Embedded installation – the box is recessed into a wall or structure, with edges sealed and coated with anti-corrosion paint to prevent moisture ingress. Pole or bracket installation – suitable for outdoor or elevated locations, with a rain cover to prevent water ingress and rust.

Wiring and Grounding

Open the terminal chamber cover and route cables through the cable glands to the terminal blocks. Connect incoming power supply cables to the designated terminals, ensuring correct connection of live, neutral, and earth wires. Use a multimeter or continuity tester to verify proper wiring.

Properly ground the distribution box using the dedicated earth terminal to prevent electrical shocks or fire hazards. Tighten all terminal screws securely and ensure wires are neatly arranged and bundled with nylon tape to prevent insulation damage.

Install N and P

E busbars if required, connecting zero and protective earth lines to the bus without splicing, and label them clearly.

Environmental and Maintenance Considerations

Install the box in a low-risk, corrosion-resistant area, away from heat sources, collisions, and moisture. If outdoors, fit a rain cover to prevent water ingress. Regularly inspect the box for damage, corrosion, or loose connections.

Apply anti-rust oil to joint surfaces after maintenance. Ensure the installation inclination does not exceed 5 degrees to maintain proper operation.

Compliance and Standards

Use boxes made of stainless steel (Baosteel 304 or higher) with a minimum thickness of 4 mm. Electrical components must comply with GB7251 or relevant national standards, maintaining proper clearance and creepage distances. All fasteners should be galvanized, and secondary wiring should use black wire with proper casing sequencing.

Following these steps ensures that the explosion-proof lighting distribution box operates safely and reliably in hazardous environments, minimizing the risk of sparks, short circuits, or fire.
