Data of communication pigtails

Fiber optic pigtails are short optical fibers with a factory-terminated connector on one end and a bare fiber on the other, used to connect network cables to equipment efficiently.

Definition and Structure

A fiber optic pigtail is a prefabricated optical fiber component that typically ranges from 0. 5 to 2 meters in length. One end has a factory-installed connector (such as LC, SC, or ST), polished and tested for low insertion loss and high return loss, while the other end is bare fiber designed for fusion or mechanical splicing to a fiber optic cable in the field.

This structure allows for reliable, high-performance terminations without the need for field-installed connectors, which are slower and less precise.

Applications

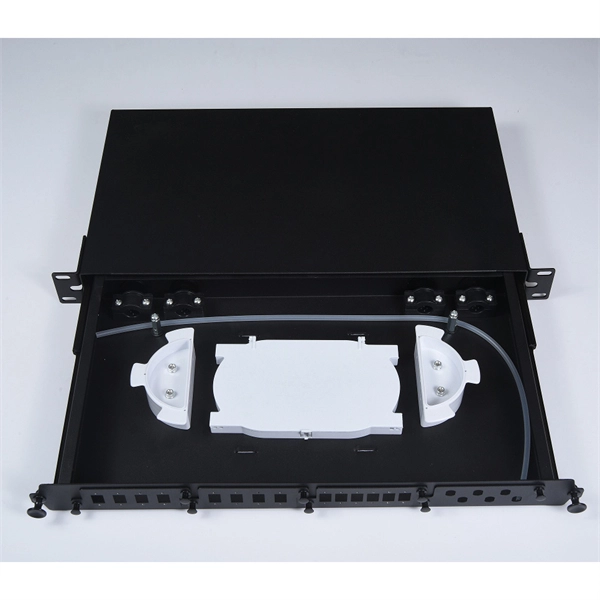

Fiber pigtails are widely used in optical distribution frames (ODFs), terminal boxes, patch panels, and data centers. They serve as a bridge between backbone cables and active equipment, enabling efficient signal transmission and distribution. In data centers, they facilitate internal connections between servers and storage devices, supporting high-speed, low-latency communication.

They are also essential in long-distance communication networks, ensuring minimal signal loss over extended distances.

Types and Selection

Pigtails can be categorized based on: Fiber type: Single-mode for long-distance transmission, multimode for shorter runs. Connector type: LC, SC, ST, or other interfaces compatible with equipment ports. Fiber count: Single-fiber or multi-fiber pigtails for high-density installations.

Polish type: Ensures optimal signal quality and low return loss. Selecting the correct pigtail depends on the network's scale, fiber type, and equipment compatibility, which directly impacts performance and reliability.

Benefits

High performance: Factory-terminated connectors provide consistent low insertion loss and high return loss. Time and cost efficiency: Reduces labor and installation time compared to field-terminated connectors. Flexibility: Can be spliced into any cable system, supporting diverse network layouts.

Reliability: Maintains stable signal transmission even in environments with electromagnetic interference. Fiber optic pigtails are therefore indispensable in modern communication networks, ensuring seamless connectivity, high-speed data transmission, and efficient network management.
