How to use a fiber optic adapter splitter

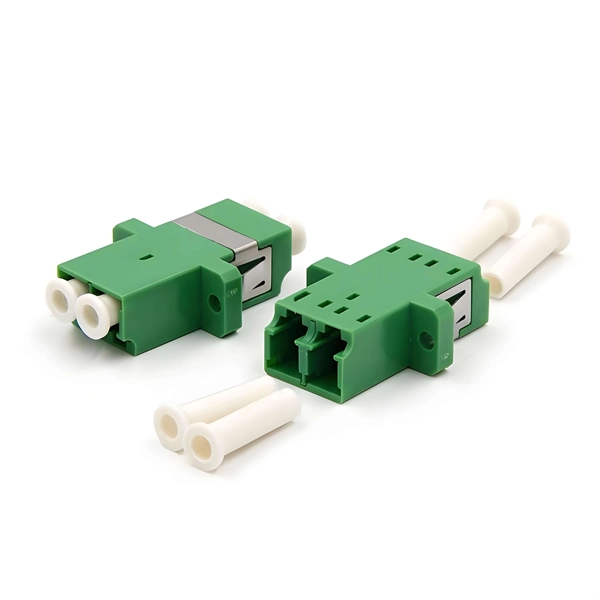

A fiber optic adapter in a splitter serves to precisely connect two fiber optic cables, ensuring minimal signal loss and proper alignment for efficient light transmission. Function of a Fiber Optic AdapterA fiber optic adapter is a passive device used to join two terminated fiber cables together. It aligns the fiber cores accurately to allow light signals to pass with minimal insertion loss and reflection.

In the context of a fiber optic splitter, adapters are used to connect the splitter's input and output ports to the network fibers or devices, ensuring reliable signal distribution. Difference Between Adapters, Couplers, and SplittersAdapters: Join two fibers, often of different connector types (e.g., LC to SC), without altering the signal. Couplers: Connect two fibers of the same type to extend cable length or link devices.

Splitters: Divide a single optical signal into multiple outputs (e.g., 1: 2, 1: 32) for distribution in networks like FTTH.

Types of Adapters in Splitters

Adapters can vary by connector type (LC, SC, ST, MPO/MTP) and material (plastic or metal with zirconia sleeves). They are often panel-mounted in telecom or data center environments but can also be part of compact home audio splitters. In home audio applications, Toslink fiber optic adapters allow one digital audio source to feed multiple devices, such as a soundbar and A/V receiver, using 1 male input to 2 female outputs.

Practical Considerations

Insertion Loss: Adapters must minimize signal loss to maintain quality, especially in high-bandwidth networks. Connector Compatibility: Ensure the adapter matches the fiber type (single-mode or multimode) and connector standard. Durability: Gold-plated or non-magnetic connectors reduce interference and improve longevity in audio splitters.

Split Ratio: In splitters, adapters help maintain the intended power distribution across outputs, critical for telecom or home setups. In summary, the adapter in a fiber optic splitter is essential for connecting fibers securely and efficiently, whether in professional telecom networks or consumer audio systems, ensuring proper signal alignment and minimal loss.
