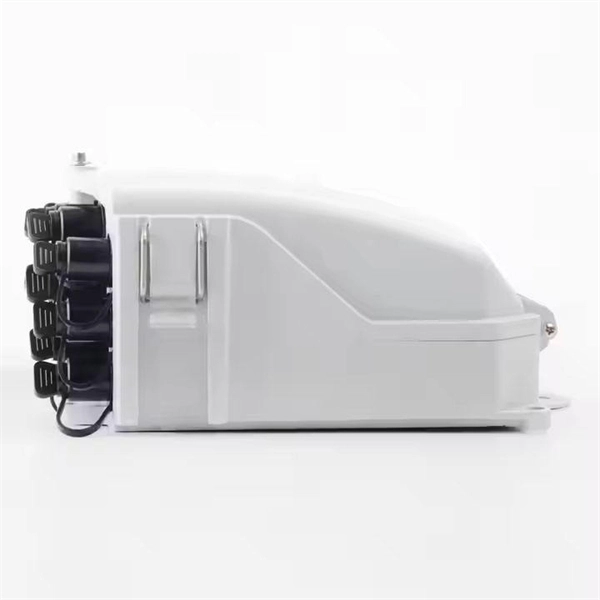

Fiber Optic Drop Box Panel Replacement Solution

Replacing a fiber optic drop box panel involves selecting a compatible fiber distribution or termination box, ensuring proper capacity, and following structured cabling standards for installation.

Types of Fiber Optic Panels and Boxes

Fiber optic drop box panels are typically part of FTTH or FTTx networks and are also referred to as Fiber Distribution Boxes (FDB), Fiber Termination Boxes (FTB), Optical Distribution Boxes (ODB), or Fiber Access Terminal (FAT) boxes. They serve as compact enclosures for managing fiber splices, connectors, and drop cables, protecting them from environmental damage while maintaining signal integrity. Indoor vs.

Outdoor: Indoor boxes are usually wall-mounted and compact, while outdoor boxes are weatherproof for pole or wall installation. Capacity: Panels range from small 2-port units to high-density 24-port or more, depending on network requirements. Connector Types: Common front-end connectors include SC, LC, or MPO, supporting single-mode or multimode fibers.

Replacement Considerations

Compatibility: Ensure the new panel matches the existing fiber type (single-mode or multimode) and connector type. Capacity Planning: Choose a panel with enough ports for current and future expansion. Modular panels allow “grow-as-you-go” configurations.

Preterminated vs. Empty Panels: Preterminated panels come with factory-installed pigtails or adapter packs, reducing installation time, while empty panels allow custom configurations. Mounting and Access: Verify wall or pole mounting options and ensure sufficient space for fiber routing and management.

Standards Compliance: Use panels that comply with ITU-T and IEC standards for mechanical protection and minimal optical loss.

Installation Tips

Carefully remove the old panel, labeling all fibers to avoid misconnection. Route fibers neatly using splice trays or management trays to prevent bending or stress. Test all connections after replacement to ensure signal integrity.

For outdoor installations, ensure proper sealing to prevent moisture ingress. Recommended ProductsCommScope FPX Series: Modular, sliding or fixed panels with options for preterminated or empty configurations. Corning Fiber Panels: Wide range of racks, splice trays, and structured cabling solutions.

FTT

H Terminal Boxes: Compact, wall-mounted boxes for residential or small enterprise networks, available in 2–16 port capacities. Amazon Options: Fiber termination and distribution boxes suitable for small-scale or DIY installations. By selecting the right panel and following proper installation practices, you can ensure a reliable and organized fiber optic drop network with minimal signal loss and easy future expansion.
