Fiber Optic Terminal Box Installation Requirements

Installing a fiber optic terminal box involves careful preparation, secure mounting, proper fiber splicing, and organized cable management to ensure network reliability and signal integrity.

Preparation

Select the Installation Location: Choose a location that is easily accessible, protected from environmental hazards, and suitable for the type of FTB (indoor or outdoor) you are using. Capacity Planning: Determine the number of fibers to be terminated to select a box with sufficient ports and future expansion capacity. Gather Tools and Accessories: Required items include the FTB, fiber optic cables, adapters, cable cutters, strippers, labeling tape, cleaning agents, gloves, screws, drill, and cable ties.

Inspect the Box: Check for defects or damage before installation.

Mounting the FTB

Wall or Rack Mounting: Secure the FTB on a wall or a 19-inch standard rack using expansion screws or other appropriate fasteners. Ensure the front panel is accessible and the box is stable. Cable Entry Preparation: Prepare the fiber cable ends according to supplier instructions.

Protect bare fibers during this stage to prevent damage. Pierce Cable Entry Diaphragm: If the box has a rubber diaphragm at the entry hole, pierce it before inserting the cable.

Fiber Routing and Splicing

Guide Posts and Splice Trays: Route the fiber through plastic guide posts inside the box to manage excess length and maintain bend radius. Clamping: Secure the fiber at the splice tray entry using plastic clamping straps. Splicing: Fusion splice the incoming fiber to the pigtails inside the splice tray.

Ensure proper alignment to maintain signal integrity. Slack Management: Store any extra fiber neatly in the box to avoid stress or bending beyond the recommended radius.

Connection and Labeling

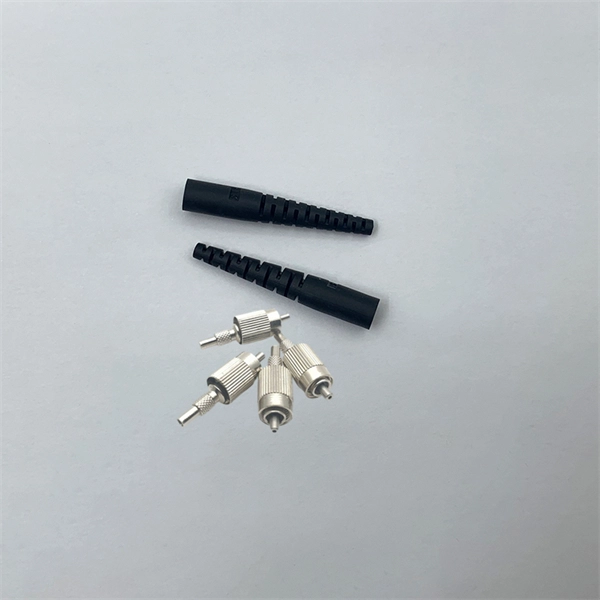

Adapters and Connectors: Install fiber adapters (SC, LC, FC, ST) as required and connect the pigtails to the adapters. Labeling: Clearly label each fiber connection for future maintenance and troubleshooting.

Testing and Maintenance

Test Connections: Verify signal integrity using an optical power meter or OTDR to ensure proper splicing and minimal loss. Regular Inspection: Periodically check the FTB for dust, moisture, or fiber stress, and clean connectors as needed.

Best Practices

Avoid tight bends and excessive stacking of splices to prevent signal loss. Use weatherproof enclosures for outdoor installations to protect against moisture, dust, and UV exposure. Ensure fibers are routed naturally without stress to maintain long-term reliability.

By following these steps, a fiber optic terminal box can be installed efficiently, providing secure, organized, and maintainable fiber connections for FTTH, FTTB, or data center networks.
