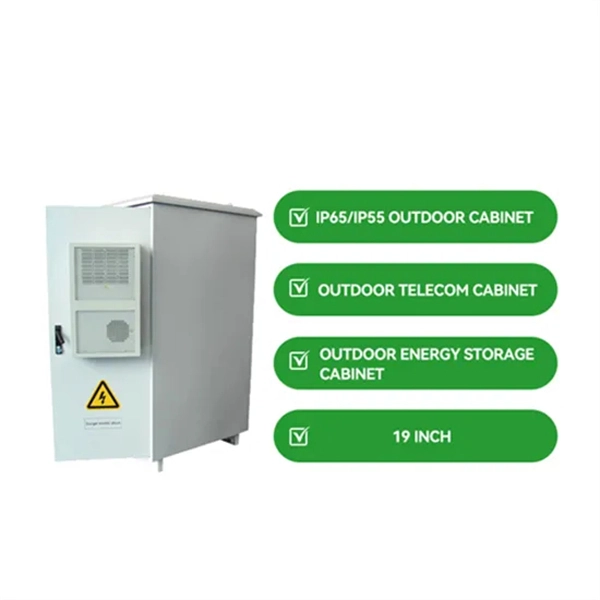

Waterproof Outdoor Distribution Box Specifications

Waterproof outdoor distribution boxes are designed with sealed enclosures, IP65/IP66 or NEMA 3R/4 ratings, durable materials, and internal busbars and breakers to safely distribute power in wet or harsh environments.

Key Specifications

Enclosure Ratings: Outdoor distribution boxes must be rain-tight to comply with NEC Article 312 for wet locations. Common ratings include IP65/IP66 for dust and water protection, or NEMA 3R/4 for weatherproof and rain-tight performance. IP65 protects against dust and low-pressure water jets, while IP66 withstands strong water jets and heavy rain.

NEM

A 3R/4 ensures compliance with U. S. electrical codes for outdoor installations. Materials: Boxes are typically fabricated from high-impact polycarbonate, ABS plastic, or metal (steel or aluminum) to ensure durability and resistance to environmental stress.

Reinforced doors and sealing gaskets enhance waterproof performance. Internal Components: Bus Bars: Copper or aluminum conductors distribute power to branch circuits. Overcurrent Protection Devices: Circuit breakers or fuses for each branch.

Main Disconnect: Required for systems over 100A per NEC 312. 8. Grounding System: Separate ground and neutral bars as per NEC 312.

6. Installation Guidelines: Outdoor boxes are usually surface-mounted to maintain weatherproofing. The front edge should be set back no more than 6 mm from the finished surface.

Proper sealing prevents moisture accumulation inside the enclosure. Customization and Sizes: Standard sizes may not meet all project requirements. Many manufacturers offer custom solutions, including bulk production for OEM or industrial applications.

Options include pre-populated boards, modular designs, and tailored dimensions. Certifications: Look for UL-listed assemblies, CE and RoHS compliance, and adherence to UL 50/50E standards for outdoor enclosures. These certifications ensure safety, reliability, and long-term performance in demanding outdoor conditions.

Applications: Suitable for industrial facilities, telecom infrastructure, outdoor power systems, and commercial installations where protection from dust, rain, and environmental hazards is critical. By selecting a waterproof outdoor distribution box with the appropriate IP/NEMA rating, durable materials, and NEC-compliant internal components, you ensure safe, reliable, and long-lasting electrical distribution in outdoor environments.
